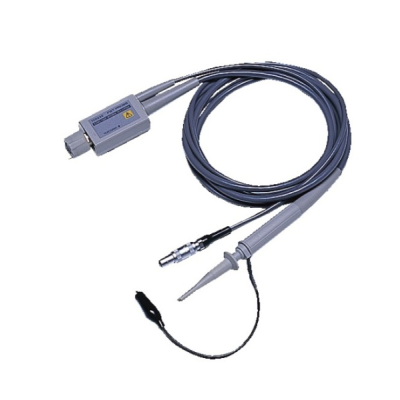

Yokogawa 900 MHZ FET PROBE 700939
Product Details
-
Manufacturer: Yokogawa
-
Model: 700939
-
Description:
900 MHZ FET PROBE 700939. printable product image. Active Probe, 10Vp, 900MHz, 10:1, 2.5M_ / 1.8pF, 1.5m, FET Probe w/ LEMO power pig-tail. See Also :
Active Probe, 10Vp, 900MHz, 10:1, 2.5M_ / 1.8pF, 1.5m, FET Probe w/ LEMO power pig-tailSee Also: 700938-3-D Active Probe Power Supply w/ 2 LEMO output jacks701934-D Active Probe Power Supply w/ 4 LEMO output jacksPlease use a 50_ input oscillosope scope or use 700976 pass-thru terminator.
Specifications
Bandwidth: DC to 900 MHz (-3dB)
Attenuation ratio: 10:1 ±2% when connected to a scope-resistance of 50 ohm ±1%
Connector Type: BNC
Input Resistance: 2.5M_
Input Capacitance: 1.8pF
Scope Impedance Required: 50_
Compensation Range: Not Applicable
Maximum input voltage: 10Vpp (DC + AC peak should be within ±10V)
Nondestructive input voltage range: ±40 V (DC + AC peak)
Cable length: 1.5m
Power Supply Cable: 1.0m (LEMO Connector Pig-Tail)
Standard accessories included: Earth Lead, Pincher Tip, IC Test Tip, Earth Attachment.
