Signal source: DCV, DCA, OHM, RTD, TC (10 kinds), Frequency, PulseMeasurement: DCV, DCA, OHM, RTD, TC (10 kinds), Frequency, PulseFeatures: Highly accurate within 0.02% of the DC voltage range for source and measure.Source and measurement can be performed simultaneously.Vertical type with large-screen display.Loop power supply function (24 VDC at a load of up to 22 mA)It is possible to measure current in the mA range while supplying power.Sink function.Sweep functions that allow 3 types of continuous outputs.Options: 94010 AC adapter, 94015 NiMH Battery, 93027: Main Body case with strap

Specifications – Model CA150

Standard Accessories
None

Power Supply
6 AA size alkaline batteriesAC adapter (sold separately)AC adapter specification: 100 to 240 VAC, 50/60 Hz, 1.4 ADedicated NiMH battery (sold separately)OUTPUT: 12 VDC, 3 A

Auto power-off
Approx. 10 minutes; it can be canceled by setting.

Operating Temperature/Humidity Range
0 to 40°C, 20 to 80 % RH (no condensation)

Storage Temperature Range
-20 to 60°C 90%RH or less (no condensation)

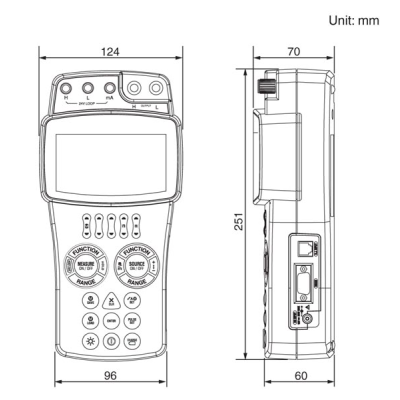

External Dimensions
251 × 124 × 70 mm

Weight
Approx. 1000 g

Conforming Standards Safety
Safety EN61010-1EMC EN 61326 Class B;EN 55011 Class B Group1EN 61000-3-2; EN 61000-3-3, EN61326

Product Overview

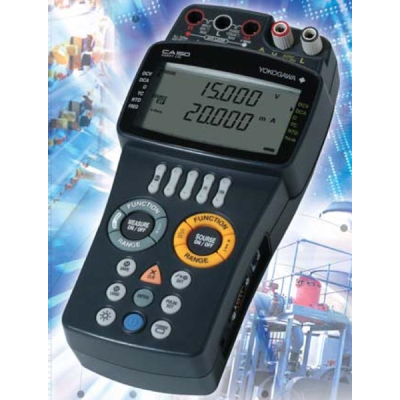

Vertical Hand-Held Calibrator
Easy-to-hold vertical body is designed to make it intuitively easy to operate, as individual functions are accessed directly by pressing assigned keys.Using the main body case (model No. 93027) (sold separately), you can hang CA150 to your body or a handrail to keep it handy.

Simultaneous Source and Measurement for Process Devices
In conventional calibration applications, multiple devices such as a standard generator, dial resistor and multi-meter were required. Now with a single CA150 unit, it is possible to perform operation check at regular inspection and maintenance of thermocouples, RTDs and instruments, as well as maintenance and equipment diagnosis of process devices such as transmitters, thermostats and signal converters.

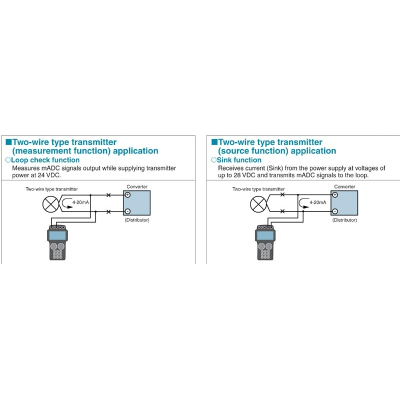

Loop Power Supply Function
It is possible to measure generated current signals while supplying loop power 24 VDC from a two-wire type transmitter (up to 22 mADC).

Highly Accurate and Multi-Functional Source and Measurement
High accuracy: 0.02% for the source unit and 0.02% for the measurement unitSource and Measurement functions: DCV voltage, DC mA, ohm, frequency and temperature (thermocouple, RTD) and 24 VDC power supply function for transmitters

Output Functions
Automatic Output Functions

Step sweep functionThis function changes the output in a staircase (step) pattern at fixed intervals.
Linear sweep functionThis function increases (or decreases) the output linearly with respect to the generated value.
Program sweep functionThis function outputs source setting values stored by the data memory function sequentially in the order they are stored in the memory.

Communication Functions
Serial interface RS232 D-Sub 9-pin connector

Memory Function
Data can be stored and loaded in setting memory (setting data) and data memory (source/measurement).

Setting memoryThis function saves/loads setting conditions.Up to 21 data items can be stored. Settings for (source/measurement) functions, ranges, generated values/measured values as well as setting mode conditions can be stored.
Data memoryThis function saves source and measure values displayed.Up to 100 data items can be stored. Storage date/time, (source/measurement) functions, ranges and generated values/measured values can be stored. Stored data can be checked on the display of the main unit as well as via communication.
