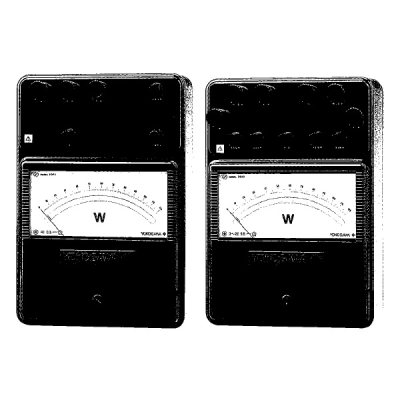

Yokogawa PORTABLE WATTMETERS 2041, 2042

Product Details

  • Manufacturer: Yokogawa

  • Model: 204111

  • Description:

    Single-Phase Low-Power-Factor Wattmeter, 120/240V (2.4/4.8 VA), 0.2/1 A (1.25/1.09VA), 0.2, 25~500 Hz, 2.8 kg

No Current Sellers for Yokogawa 204111

Sign Up/Login to get notified when someone has one for sale.

Model 2041 single-phase wattmeters and single-phase low-power-factor wattmeters and Model 2042 three-phase wattmeters are electrodynamometer type wattmeters with indicators based on taut-band suspension. They can handle DC and frequencies from 25 Hz to 1000 Hz, and provide excellent power factor characteristics. These instruments are shielded with dual permalloy sheets as protection against external magnetic fields.

Specifications – Model 2041 01

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
0.2/1 A (0.66/0.56VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

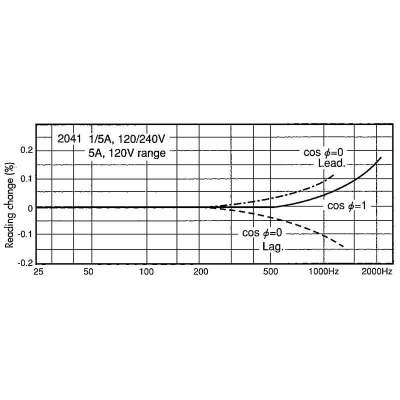

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 02

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
1/5A (0.93/0.84VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 03

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
5/25A (1.72/1.69VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2042 01

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
0.2/1 A (0.66/0.56VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
3.2 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2042 02

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
1/5A (0.93/0.84VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
3.2 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2042 03

Class
JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power)
5/25A (1.72/1.69VA)

Rated Power Factor
1.0

Operating Frequency
DC, 25~1000 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
3.2 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 11

Class
JIS C 1102 :1997 equivalent to Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (2.4/4.8 VA)

Rated Current (Approximate Consumed Power)
0.2/1 A (1.25/1.09VA)

Rated Power Factor
0.2

Operating Frequency
25~500 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 12

Class
JIS C 1102 :1997 equivalent to Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (2.4/4.8 VA)

Rated Current (Approximate Consumed Power)
1/5A (1.7/1.5VA)

Rated Power Factor
0.2

Operating Frequency
25~500 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 13

Class
JIS C 1102 :1997 equivalent to Class 0.5

Rated Voltage (Approximate Consumed Power)
120/240V (2.4/4.8 VA)

Rated Current (Approximate Consumed Power)
5/25A (2.62/2.5VA)

Rated Power Factor
0.2

Operating Frequency
25~500 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 21

Class
JIS C 1102 :1997 equivalent to Class 0.5

Rated Voltage (Approximate Consumed Power)
30/60V (0.6/1.2 VA)

Rated Current (Approximate Consumed Power)
0.2/1 A (1.25/1.09VA)

Rated Power Factor
0.2

Operating Frequency
25~500 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Specifications – Model 2041 22,

Class
JIS C 1102 :1997 equivalent to Class 0.5

Rated Voltage (Approximate Consumed Power)
30/60V (0.6/1.2 VA)

Rated Current (Approximate Consumed Power)
1/5A (1.7/1.5VA)

Rated Power Factor
0.2

Operating Frequency
25~500 Hz

Operating Principle
Electrodynamometer type

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
120

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 136 mm

Approx. External Weight
2.8 kg

Optional Accessories
2292 01 Carrying case

Features

Frequency range: DC, 25 Hz to 1000 Hz (2041 01-03,2042 01-03)
Effective for measurement of low-power-factor load power and small power (2041 11-13, 21, 22)
Low self-consuming power
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.

Product Average Rating:
(0 reviews)

There are no reviews for this product at the moment

Your Review: Please log in to add a review.

No current Alternatives.
You may find Alternatives in category.

Advertisement
