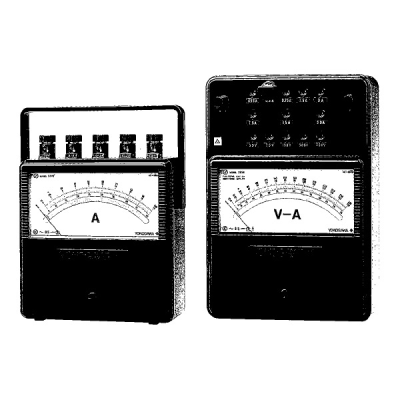

Models 2013 and 2014 ammeters & voltmeters are moving iron type instruments using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and good resistance to shock impact. A cap shield mechanism serving to reduce external magnetic fields, a superior temperature compensation circuit, and other components ensure stable performance.

Specifications – Model 201301

Max. Scale Value
20/100 mA

Approximate Internal Resistance and Consumed Power
0.3/0.2 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201302

Max. Scale Value
50/250 mA

Approximate Internal Resistance and Consumed Power
0.5/0.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/125 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201303

Max. Scale Value
100/500 mA

Approximate Internal Resistance and Consumed Power
0.5/0.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201304

Max. Scale Value
0.2/1 A

Approximate Internal Resistance and Consumed Power
0.4/0.4 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201305

Max. Scale Value
0.5/2.5 A

Approximate Internal Resistance and Consumed Power
0.5/0.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/125 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201306

Max. Scale Value
1/5 A

Approximate Internal Resistance and Consumed Power
0.6/0.6 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201307

Max. Scale Value
2/10 A

Approximate Internal Resistance and Consumed Power
0.7/0.7 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201308

Max. Scale Value
5/25 A

Approximate Internal Resistance and Consumed Power
1/1 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/125 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201309

Max. Scale Value
10/50 A

Approximate Internal Resistance and Consumed Power
1.2/1.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201310

Max. Scale Value
20/50/100/200 mA

Approximate Internal Resistance and Consumed Power
0.4/0.3/0.2/0.3 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201311

Max. Scale Value
0.1/0.2/0.5/1 A

Approximate Internal Resistance and Consumed Power
0.2/0.3/0.4/.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201312

Max. Scale Value
0.5/1/2/5 A

Approximate Internal Resistance and Consumed Power
0.7/0.6/0.5/0.3 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201313

Max. Scale Value
2/5/10/20 A

Approximate Internal Resistance and Consumed Power
0.5/0.3/0.6/0.9 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201314

Max. Scale Value
10/20/50/100 A

Approximate Internal Resistance and Consumed Power
0.6/0.9/1.7/2.7

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201315

Max. Scale Value
15/30 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201316

Max. Scale Value
30/75 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201317

Max. Scale Value
75/150 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201318

Max. Scale Value
150/300 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201319

Max. Scale Value
300/750 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201320

Max. Scale Value
(5 A)

Approximate Internal Resistance and Consumed Power
0.2 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201321

Max. Scale Value
(150 V)

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201322

Max. Scale Value
500A (500 AT)

Approximate Internal Resistance and Consumed Power
Used in combination with Current transformer 2244 (accessory)

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100/150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201323

Max. Scale Value
0.5/1/2/5

Approximate Internal Resistance and Consumed Power
1.2 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201324

Max. Scale Value
2/5/10/20 A

Approximate Internal Resistance and Consumed Power
1.2 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201325

Max. Scale Value
10/20/50/100 A

Approximate Internal Resistance and Consumed Power
3.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
100 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201326

Max. Scale Value
75/150 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201327

Max. Scale Value
150/300 V

Approximate Internal Resistance and Consumed Power
3.8 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.7 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Specifications – Model 201400

Max. Scale Value
30/75/15/300/750V 0.15/0.3/0.75/1.5/3/7.5/15/30A

Approximate Internal Resistance and Consumed Power
Current measurement range 7.5 A or less 0.7 VA Each voltage measurement range 4.5 VA

Operating Principle
Moving iron type

Class
JIS C 1102: 1997 Class 0.5

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Operating Frequency Range
45 ~ 65 Hz

Linemax
250V

Scale Divisions
150 divisions

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Approx. External Dimension
260 × 180 × 115 mm

Approx. External Weight
4.2 kg

Optional Accessories
2291 01 Carrying case for 2013 2292 01 Carrying case for 2014

Features:

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
Stable performance ensures that changes over time are negligible.
Magnetic circuit reduces the effects of external magnetic fields.
Superior temperature compensation circuit reduces external temperature effects.

Product Average Rating:

(0 reviews)

---

---

No current Alternatives.
You may find Alternatives in category.
