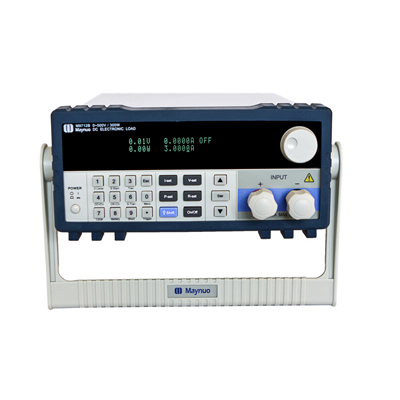

The new M97XX series programmable DC electronic load is a new generation product designed from Maynuo Electronic Co.,Ltd. Incorporating high-performance chips, the M97XX series delivers high speed and high accuracy with a resolution of 0.1 mV and 0.01 mA (basic accuracy is 0.03% and basic current rise speed is 2.5 A/_s). M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar celland fuel cell etc.test and measurement applications. From 150W to 200KW

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV
Over current, over voltage, over power, over heating and polarity reversal protection
High-luminance vacuum fluorescent display (VFD) screen with two line, four channel display
Intelligent fan system will automatically activate based on changing ambient temperatures
Soft-start time setting, activating the power supply in accordance with the set voltage value
Battery test and short-circuit test functions
Capable of rising edge and falling edge dynamic testing
Supporting external triggeron either input or output
External current waveform monitor terminal output terminal
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration and standard rack mountable
Edits arbitrary waveforms in list function
Available with RS232/RS485/USB serial interfaces.
