5 minute warm-up to guaranteed measurement accuracy
Measurement routines for TOI, ACPR, OBW, CCDF (ESA-E only), multicarrier ACP, SEM, harmonic distortion, spurious emissions
IntuiLink PC connectivity software to Microsoft Office
Context sensitive one button help for greatest ease of use
Large, high-resolution, color display

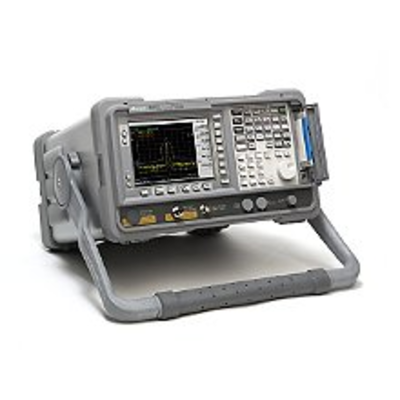

The ESA-L Series provides basic spectrum analysis with the speed and accuracy to meet your needs. These affordable analyzers feature fast, 4 ms RF sweeps. For fieldwork, these portable analyzers have a weather-resistant front panel that allows operation in rain and high humidity.

The ESA-E Series with FM demodulation, optional 1 Hz RBW filters, and 50 ns zero span sweep times provides excellent value. With a growing set of built-in functions and the most complete set of documented specifications, you have a solution that will lead to improved measurement performance.

Performance
Overall amplitude accuracy: 1.1 dB
Third order intermodulation distortion: +7.5 dBm
Measurement Applications
Narrow resolution bandwidth, 8590 series code compatibility, or 75 ohm tracking generator
PowerSuite one-button power measurements included as standard
Features
75 ohm input port (standard)
75 ohm tracking generator and battery for field use (optional)
5 minute warm-up to guaranteed measurement accuracy
Rugged and portable for lab grade performance in the field

BAS : Includes IF/sweep port (A4J) and GPIB connection (A4H) BTG: Includes BAS, plus tracking generator

functionality
