Our EMF Desktop-Spectrum-Analyzer for the professional at an unbeatable price!

Ultra broad range and high accuracy. Range according to complete ICNIRP (public)!
The optional Active Differential Probe for the NF-5030 X is a must have for direct cable-measurements on DSL, ADSL, free running oszillators, mains etc.

The installed high-performance multi-channel 65MSPS 12Bit DDC frequency filter allows fast, extremely sensitive and super crisp frequency measurement of even the weakest signals down to 1pT (0.001nT)! Just one example of the added possibilities is measurement of the 125-135kHz RFID band (decoder software already in development).

By adding the 20MHz or 30MHz frequency extensions, wholly new applications become possible: for example, assessment of the 13.56MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC measurement. An ideal solution for technicians and authorities for ACCURATE examination of signal sources up to 30MHz.

AC analog input with high sensitivity (down to 200nV).

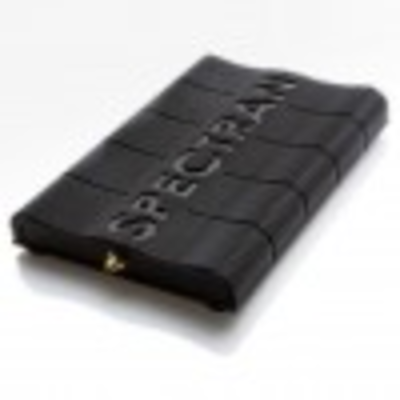

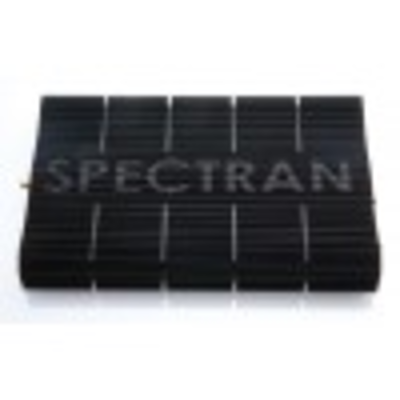

Technical details EMF Desktop-Spectrum-Analyzer Spectran NF-5030 X

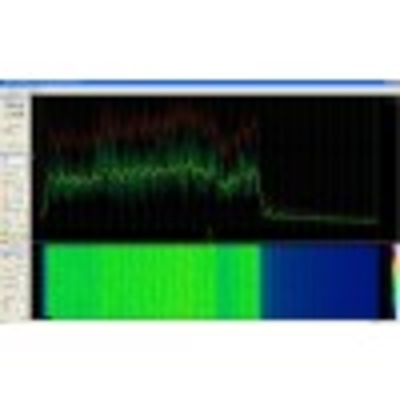

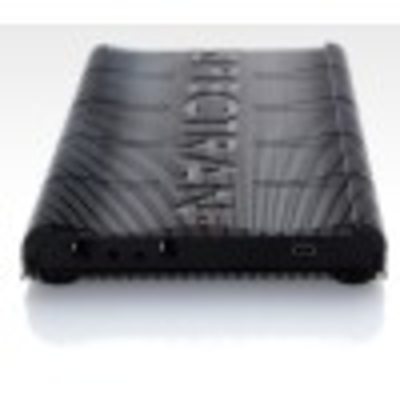

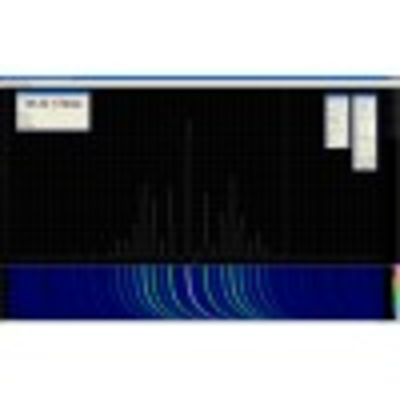

100% controlled by USB only (no display) 100% powered by the external power supply only (no battery) High impedance SMA input Internal speaker (which can be switched off) Audio out for the use of PC based FFT analyzer software Very thick (3mm) aluminium housing offering very good screening Incl. Option 005 (12 Bit DDC frequency filter) Incl. PC Analyzer Software Measurement range up to DIN/VDE 0848 65 MSPS Frequency range: 1Hz to 1MHz (optional 30MHz) Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz) Typ. accuracy: 3% External SMA signal input USB 2.0 Interface REALTIME FFT spectrum display True RMS signal strength measurement Average (AVG) measurement PEAK Hold Frequency and signal strength display! DIN/VDE 0848 Exposure limit calculation!

Option 008/010 (20MHz/30MHz frequencyrange)
Option 025 (External 25dB Preamplifier)
Option 035 (External 35dB Preamplifier)
