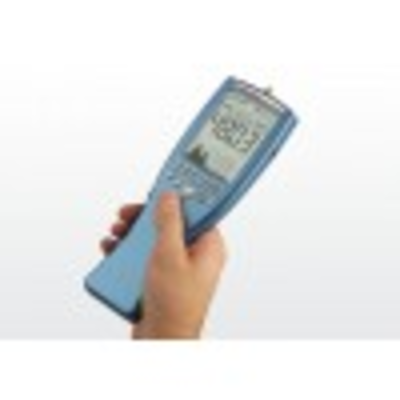

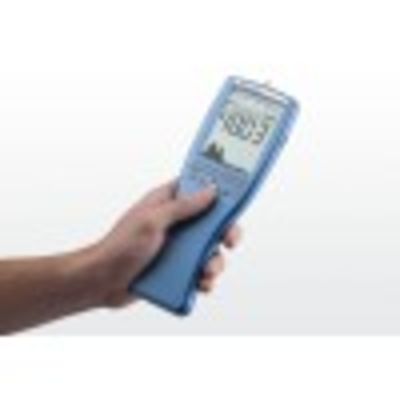

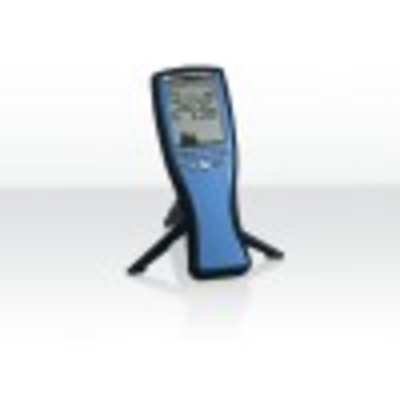

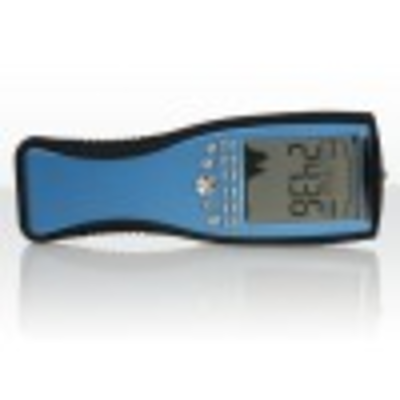

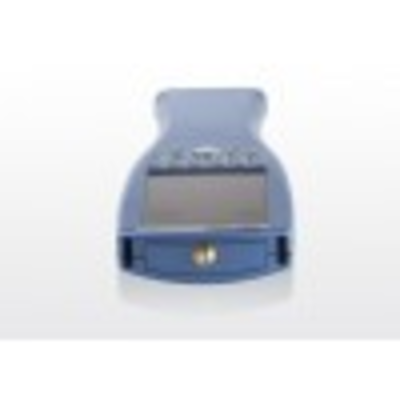

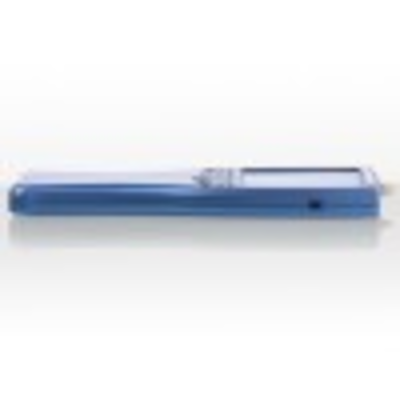

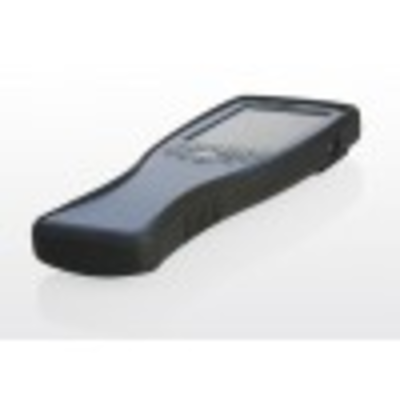

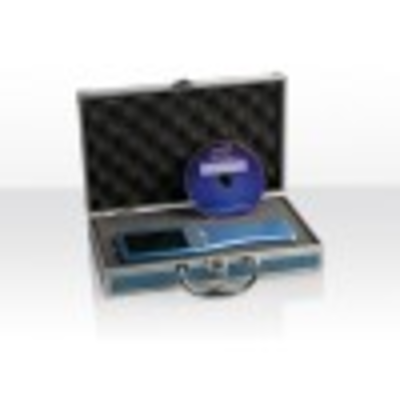

Aaronia Spectran NF-5030
Product Details
-
Manufacturer: Aaronia
-
Model: NF-5030
-
Description:
Our EMC spectrum analyzer flagship. Suitable for Pre-Compliance and EMC/EMI tests up to 30MHz. Wide range of additional options to optimize the analyzer functionality.
Our EMF spectrum analyzer for the professional at an unbeatable price!
AC analog input with high sensitivity (down to 200nV).

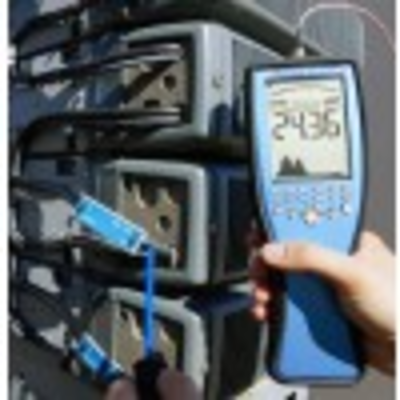

The optional Active Differential Probe for the NF-5030 is a must have for direct cable-measurements of DSL, ADSL, free running oscillators, mains etc..

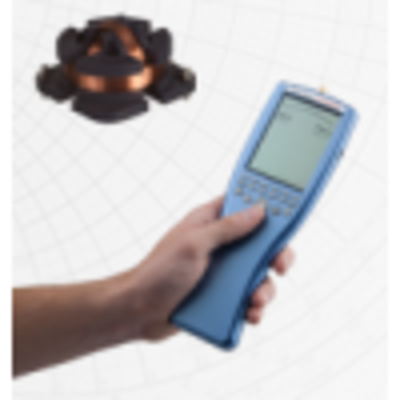

A further available option is the isotropic 3D static magnetic field sensor for differential measurement of static magnetic fields of permanent magnets, geomagnetic anomalies in the earths magnetic field and others.
Absolutely essential: The optional high performance multi-channel 65MSPS 12Bit DDC frequency filter (option 005) allows fast, extremely sensitive and super crisp frequency measurement of very weak signals down to 1pT (0.001nT). Measurement of the 125-135kHz RFID band (decoder software already in development) and more. Get this option at an incredible price!
By adding the 20MHz or 30MHz frequency extensions, complete new applications become possible, e.g. assessment of the 13.56MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC measurements. An ideal solution for technicians and authorities for accurate examination of signal sources up to 30MHz.
Technical details EMF Spectrum Analyzer SPECTRAN NF-5030

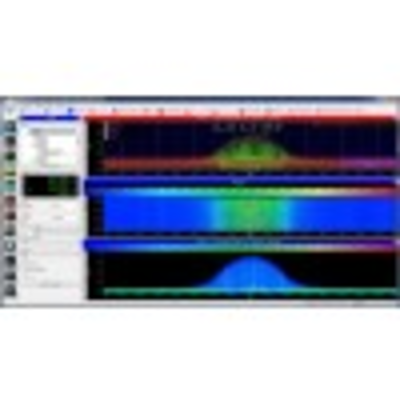

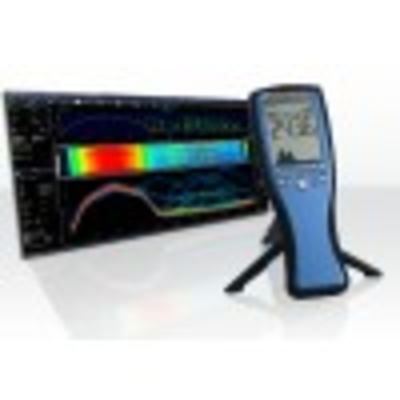

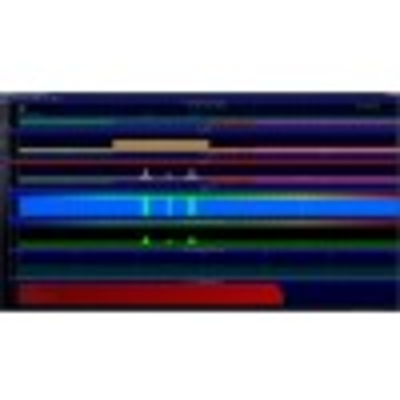

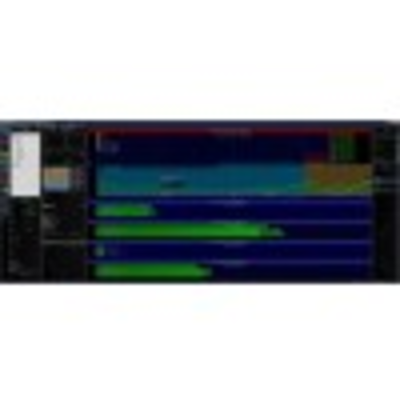

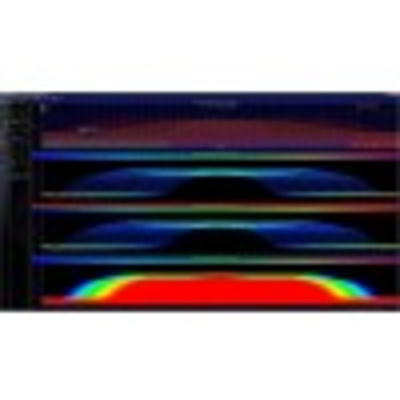

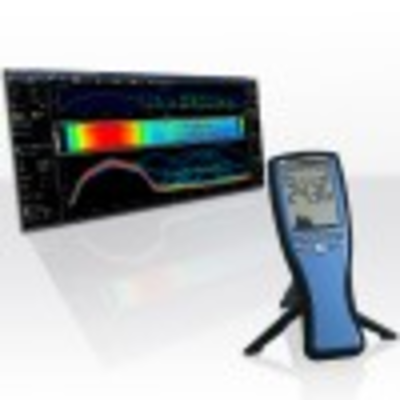

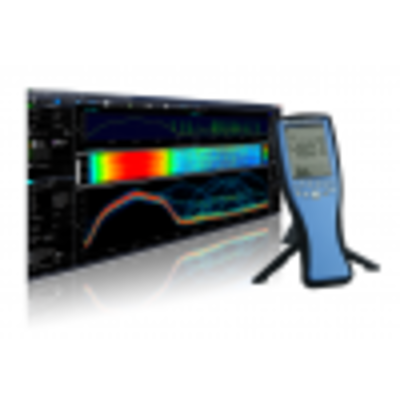

Inclusive PC Analyzer Software Vastly expanded range Measurement range up to DIN/VDE 0848 65 MSPS Lots of options Frequency range: 1Hz to 1MHz (optional 20/30MHz) Typ. level range E-Field: 0,1V/m to 5000V/m (typ. at 50Hz) Typ. level range H-Field: 1pT to 500T (typ. at 50Hz) Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz) Typ. accuracy: 3% External SMA signal input USB 2.0 Interface Real-time FFT/DFT spectrum display Resolution (RBW): 0,3Hz to 10MHz (1-3-10 step) Detectors: RMS, Min/Max Units: V, V/m, T, G, A/m Demodulator: AM, FM Simultaneous M-Display X, Y, Z axes 3D magnetic field measurement True RMS signal strength measurement Average (AVG) measurement PEAK Hold Frequency and signal strength display High resolution multifunction display DIN/VDE 0848 exposure limit calculation Internal data logger Internet flash software updatesOption 001 (Memory expansion)
Option 006 (3D earth’s magnetic field and static magnetic field sensor)
Option 009 (24BIT resolution)
Option 008/010 (20MHz/30MHz frequencyrange)
Option 025 (External 25dB Preamplifier)
Option 035 (External 35dB Preamplifier)
