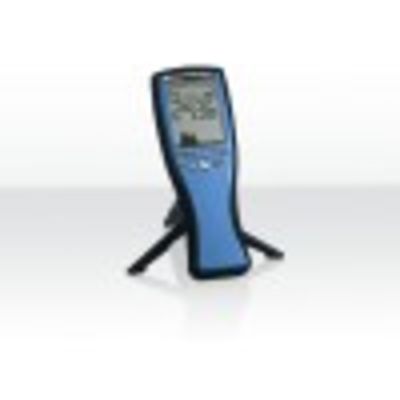

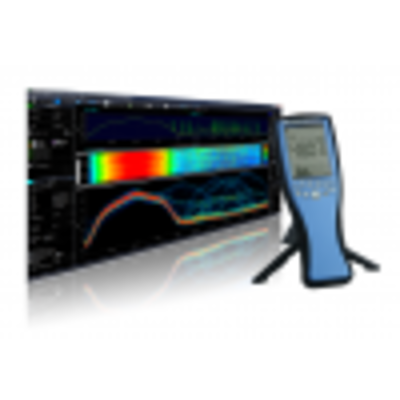

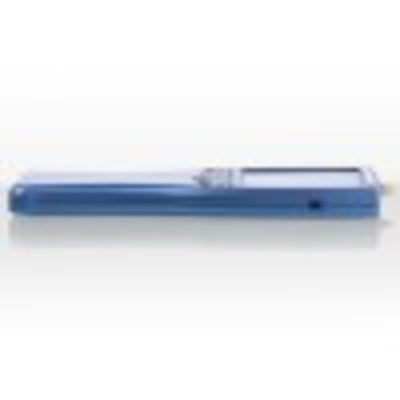

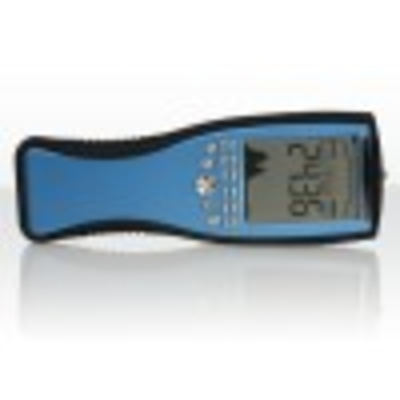

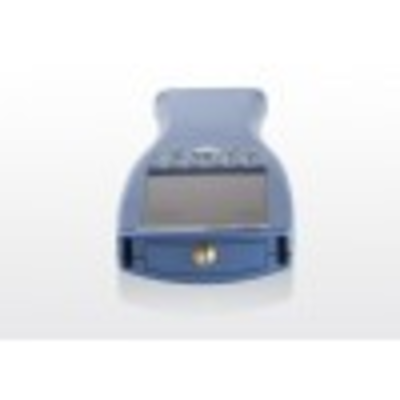

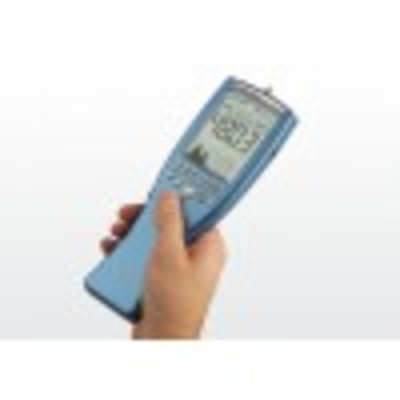

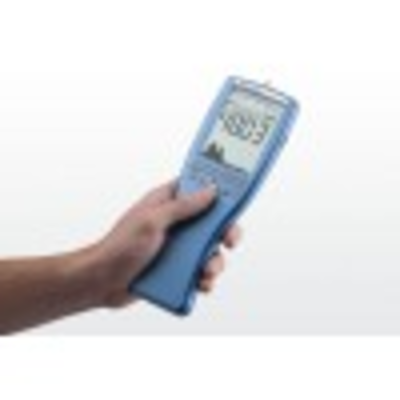

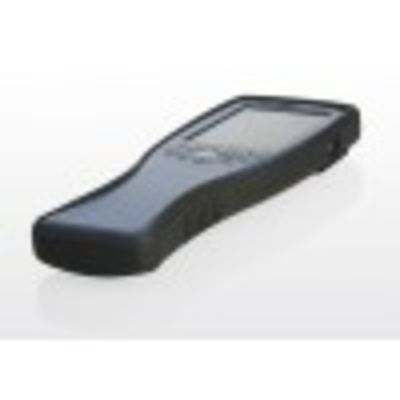

Aaronia SPECTRAN NF-5030S (ICNIRP)
Product Details
-
Manufacturer: Aaronia
-
Model: NF-5030S
-
Description:
High Power version of the NF-5030. Suitable for Pre-Compliance and EMC/EMI tests up to 30MHz. Wide range of additional options to optimize the analyzer functionality. Full measurement range for DIN/VDE 0848 (Occupational).
Our high power spectrum analyzer for the professional at an unbeatable price!
Ultra broad range and high accuracy. Frequency range according to complete ICNIRP (public)! Perfect for Pre-Compliance and EMC/EMI tests up to 30 MHz.
By adding the 20MHz or 30MHz frequency extensions, complete new applications become possible, e.g. assessment of the 13.56MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC measurements. An ideal solution for technicians and authorities for accurate examination of signal sources up to 30MHz.
Technical details Spectrum Analyzer SPECTRAN NF-5030S

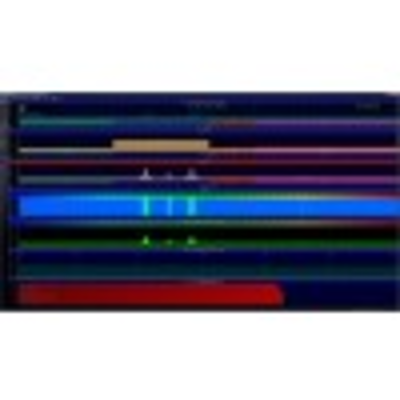

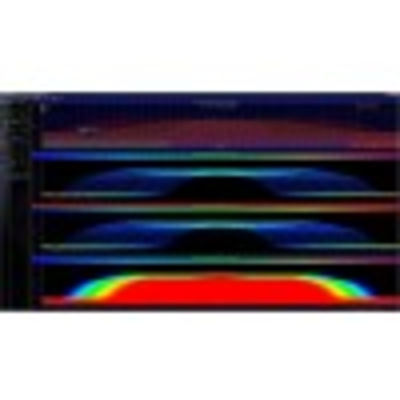

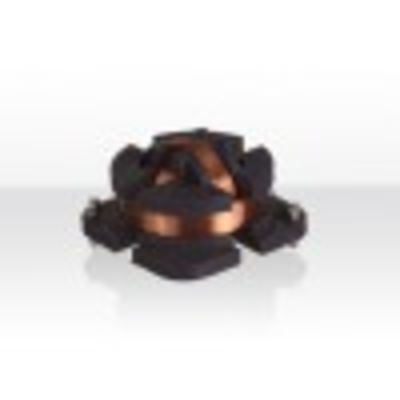

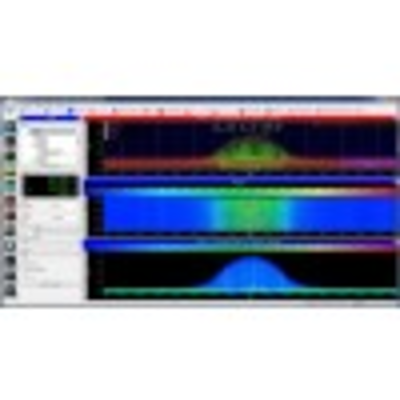

Vastly expanded range Measurement range up to DIN/VDE 0848 65 MSPS Lots of options Frequency range: 1Hz to 1MHz (optional 30MHz) Typ. level range E-Field: 1V/m to 50kV/m Typ. level range H-Field: 100pT to 20mT Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz) Typ. accuracy: 3% External SMA signal input USB 2.0 Interface Real-time FFT/DFT spectrum display Resolution (RBW): 0,3Hz to 10MHz (1-3-10 step) Detectors: RMS, Min/Max Units: V, V/m, T, G, A/m Demodulator: AM, FM Simultaneous M-Display X, Y, Z axes 3D magnetic field measurement True RMS signal strength measurement Average (AVG) measurement PEAK Hold Frequency and signal strength display High resolution multifunction display DIN/VDE 0848 exposure limit calculation Internal data logger Internet flash software updatesOption 001 (Memory expansion)
Option 006 (3D earth’s magnetic field and static magnetic field sensor)
Option 009 (24BIT resolution)
Option 008/010 (20MHz/30MHz frequencyrange)
Option 025 (External 25dB Preamplifier)
Option 035 (External 35dB Preamplifier)
