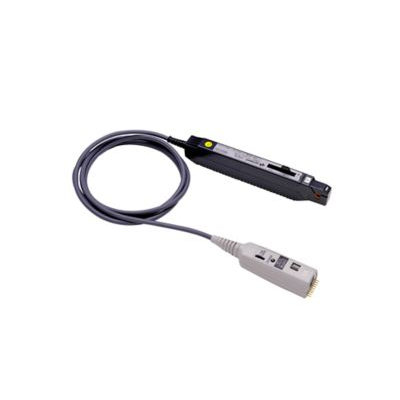

Hp/Agilent/Keysight 1147B 50 MHz/15A AC/DC Current Probe
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: 1147B
-
Description:
The Keysight 1147B is a wide bandwidth, active current probe for 54800, 3000X, 5000, 6000, 7000, 8000, and 9000 Series oscilloscopes except the 6000 100 MHz models.
The Keysight 1147B is a wide bandwidth, active current probe for InfiniiVision and Infiniium oscilloscopes.
The probe features flat bandwidth (DC-50MHz), low noise (
Wide bandwidth: DC to 50MHz
High S/N ratio, low current measurement capability
15A peak, 15 ADC, 10 Arms continuous, 30A peak non-continuous
Easy protect function at excessive input
Demagnetizing switch to remove any residual magnetism that builds up in the magnetic core
Compatible with high impedance AutoProbe interface
For use with 80000/90000 Series, use N278xA current probe with N2779A power supply and E2697A high impedance adapter
For use with 90000 X-Series, use the N5449A high impedance probe adapter
