Replacement product:11940C Close Field Probe available from Cokeva

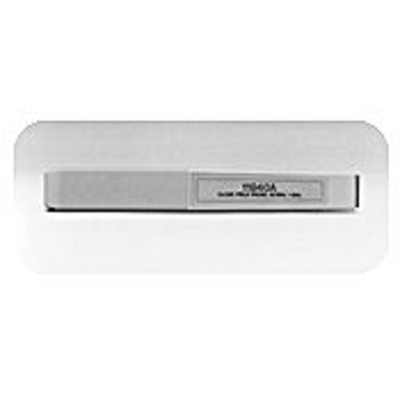

The Keysight 11940A is a hand-held probe speciallydesigned to measure magnetic field radiation from surface currents, slots, cable, and ICs for EMC diagnostic and troubleshooting measurements. Its unique design results in a high level of electric field rejection. This significantly reduces errors allowing calibrated and repeatable measurements. Each probe is calibrated and comes with a two-meter, RG-223 coaxial cable, an SMA (f) to Type-N (m) adapter, and an SMA (f) to BNC (m) adapter.

High level of electric field rejection

Allows calibrated and repeatable measurements

Maximum Input Power: 0.5 watts

Temperature Range: Variation over 0 C to +40 C

Dielectric Breakdown: 1 kV, typical

Connector Type: SMA, replaceable barrel

VSWR:< 3:1, typical

Antenna Factor Accuracy: Individually calibrated to within 2 dB in a 377 ohm field impedance
