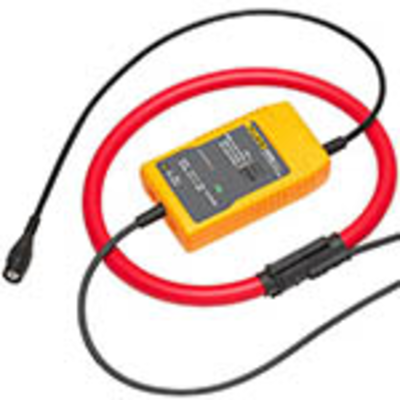

Fluke i6000s Flex AC Current Probe

Product Details

  • Manufacturer: Fluke

  • Model: I6000s Flex-24

  • Description:

No Current Sellers for Fluke I6000s Flex-24

Sign Up/Login to get notified when someone has one for sale.

The i6000sflex is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 6000A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

  • The i6000sflex is an AC current probe utilizing the Rogowski principle
  • It can be used to measure currents up to 6000A when used in conjunction with oscilloscopes, recorders or data loggers
  • The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas
  • Current Ranges: 60A/600A/6000A AC RMS
  • Output Sensitivity (AC coupled): 50 mV /5mV / 0.5mV per A
  • Frequency Range: 10 Hz to 50 kHz (- 3 dB)
  • Load Impedance: 100 kOhm minimum
  • Accuracy (at +25°C): ±1% of range (45–65 Hz)
  • Linearity (10% to 100% of range): ±0.2% of reading
