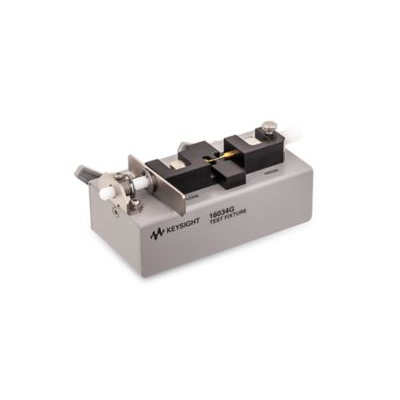

Hp/Agilent/Keysight 16034G SMD Test Fixture

Product Details

  • Manufacturer: Hp/Agilent/Keysight

  • Model: 16034G

  • Description:

    The 16034G is a test fixture for impedance measurements.

No Current Sellers for Hp/Agilent/Keysight 16034G

Sign Up/Login to get notified when someone has one for sale.

The 16034G is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 0.6(L) x 0.3(W)[mm].

DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)

Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A

Frequency: DC to 3 MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)

DC Bias: -40V to +40V

Operating Temperature: 0 to 55degC

Terminal Connection: BNC, 4 terminal-pair

Dimensions(approx.): 120(W) x 50(H) x 70(D)mm

SMD Test Fixture Selection Table
