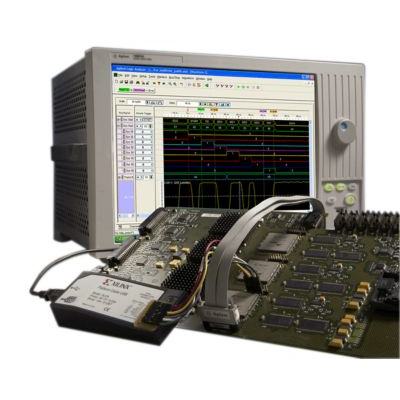

The 16998A High-performance FPGA Analyzer provides a convenient, single model number for purchasing a high-performance FPGA debug and validation system. The system includes support for both Xilinx and Altera FPGAs. The analyzer comes with 4 M of acquisition memory, essential for capturing enough system activity to get to the root cause of complex problems. Expandability is the key to the analyzers long-term value. As your needs evolve you can customize this system with innovative probing, high-performance measurement modules, and post-processing analysis tools.

Key BenefitsCorrelate internal FPGA activity with external events in the surrounding systemAccess up to 128 internal signals per each FPGA pin dedicated to debug Acquire single-ended and differential signals, threshold is adjustable from -3V to 5V (10 mV increments)Free 4 M acquisition memory and FPGA Dynamic Probes for Xilinx and AlteraState / Timing AnalysisState clock rates up to 667 MHzData rates: up to 1066 Mb/s (Dual Sample), up to 667 Mb/s (Double Data Rate – DDR)4 GHz (250 ps) timing zoom with 64 K memory1.2 GHz / 600 MHz (half / full-channel) conventional timing with deep memory 600 MHz transitional timingXilinx and Altera FPGA CompatibilityXilinx devices: Virtex-5, Virtex-4, Virtex-II Pro, Virtex-II, and Spartan-3/3E/3A Requires Xilinx ChipScope Pro or Embedded Development Kit (EDK)Altera devices: Stratix series, Cyclone series, MAX series, APEX series, and Excaliber series Requires Altera Quartus II Logic Analyzer InterfaceAnalyzer Configuration and Accessory Considerations16901A 2-slot modular logic analyzer with 15-inch (38.1 cm) color touch screen display68-channel 16950B logic analyzer module with 4 M acquisition memory. Additional slot available for additional measurement capability.B4655A FPGA Dynamic Probe for Xilinx, B4656A FPGA Dynamic Probe for AlteraCompatible with 90-pin logic analyzer probes. Probes are ordered separately Keysights Probe Recommendations
