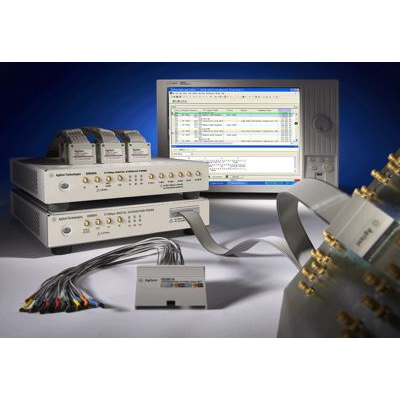

The 16999A Digital Wireless Stimulus and Analysis System provides a convenient, single model number for purchasing a complete debug and validation system for designs incorporating digital serial buses. The system comes with 16 M of acquisition memory, essential for capturing enough system activity for demodulation analysis of 3GPP over-air standards. Expandability is the key to the systems long-term value. The system is configured to best address digital serial buses. As your needs evolve you can customize this system with innovative probing, high-performance measurement modules, and post-processing analysis tools. The integration of the Digital Wireless Stimulus and Analysis System with theKeysight RF portfolio provides a cross-domain solution that will help you rapidly deploy DigRF v3-based designs.

CapabilitiesProvides a complete system for digital stimulus and analysis of digital serial busesDisplays bus traffic at the protocol levelTriggers on protocol-specific packets, specific bits within a packet, and protocol violationsEnables you to test unique value added extensions to the protocol standardIncludes16902B 6-slot logic analyzer mainframe16720A pattern generator and 16950B logic analyzer modulesStimulus and acquisition probes (selected bus standard determines model numbers), E5385A Samtec probes (qty 2), E5381A differential flying lead set, Set of 40 inch SMA cablesB4602A signal extractor tool, B4641A protocol development kitOrdering ConsiderationsSelect the digital wireless personality. Currently supported: DigRF v3Support for additional standards is under development. Contact Keysight regarding support for your specific bus standardSave >55% on 16 M acquisition memory for digital wireless system
