Tektronix DPS73308SX Performance Oscilloscopes

Product Details

Manufacturer: Tektronix
Model: DPS73308SX
Description:
DPS73308SX 33GHz Performance Oscilloscopes

No Current Sellers for Tektronix DPS73308SX

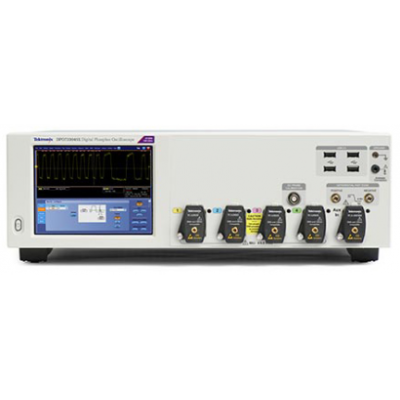

The DPO70000SX 70 GHz oscilloscope provides the industry's lowest-noise real time acquisition using Tektronix' patented Asynchronous Time Interleaving (ATI) technology. The series' compact and scalable package allows flexible system configurations. Get the most accurate real time performance for ultra-bandwidth applications like coherent optical, radar, high speed serial data communications, or leading-edge research.

Using ATI technology, the 70 GHz model delivers best-in-class signal capture.
Compact, scalable, 5 1/4" package allows you to position units close to the device under test.
UltraSync ensures precise data synchronization and convenient Master/Extension operation in multi-unit systems.

Features	Benefits
70 GHz Bandwidth	Preserve signal-to-noise ratio for higher fidelity using Tektronix’ patented Asynchronous Time Interleaving (ATI) technology with 70 GHz real-time bandwidth. More accurately capture and measure your signals at higher signal speeds than possible with any other oscilloscope available today.
200 GS/s Sample Rate	200 GS/s sample rate with 5 ps/sample resolution gives improved resolution and timing.
Lowest-noise, Highest Effective Number of Bits (ENOB)	Perform your tests with more available margin and trust that you are seeing your real signal to make more precise measurements.
UltraSync Architecture	Ensures precise data timing in a multi-unit system for acquisition-to-acquisition jitter <500fs. Leverages each unit’s processor for fast waveform transfer to give rapid analysis.
Compact Form Factor	Single unit height of 5 ¼ inches (3U). Allows higher channel count in less rack space and enables multiple DPO70000SX Oscilloscopes to be positioned close to the device under test (DUT).
Scalable System Configuration	Operate instruments individually or easily aggregate into a system, providing fully flexible configurations.
DPOJET Jitter and Eye Diagram Analysis	Simplifies discovering signal integrity concerns, jitter and their related sources in today's high-speed serial, digital, and communication system designs.
SDLA Serial Data Link Analysis Visualizer	Enables complete measurement circuit de-embed, simulation circuit embed and receiver equalization.
SignalVu Vector Signal Analysis Software	Easily debug or analyze your wideband RF signals such as radar, EW, or WLAN 802.11ac signals, when using SignalVu together with the full trigger capability of the oscilloscope. SignalVu gets you the same vector signal and pulse analysis functionality as available on a Tektronix Real-Time Signal Analyzer (RTSA).
TekScope Anywhere™ Offline Waveform Analysis	Enables better time and resource utilization; view, measure, and analyze data captured in your lab, independent of oscilloscope hardware.

Software Option	Description
TekScope Anywhere™	TekScope Anywhere^TM brings the power of the scope analysis environment to the PC. Users now have the flexibility to perform analysis tasks including timing, eye, and jitter analysis outside the lab.
Opt. DJA	Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes.
Opt. SDLA64	Offers the capability to emulate the serial data channel, de-embed fixtures, cables, or probes, and add or remove equalization. Option SDLA64 also provides processing of waveforms with IBIS-AMI Receiver Equalization, or CTLE, FFE and/or DFE equalization. DPOJET provides advanced measurement and jitter analysis of the resulting waveforms.
Opt. SV23	WLAN 802.11a/b/g/j/p measurement application
Opt. SV24	WLAN 802.11n measurement application
Opt. SV25	WLAN 802.11ac measurement application
Opt. SV27	SignalVu Bluetooth Basic LE TX SIG measurements
Opt. SVA	SignalVu AM/FM/Direct Audio Measurements.
Opt. SVE	SignalVu wideband spectral analysis and measurements.
Opt. SVM	SignalVu General-purpose Modulation Analysis
Opt. SVP	SignalVu Advanced Pulse Signal Analysis.
Opt. SVT	SignalVu Settling Time Measurements – Frequency and Phase.
