NSN: 6625-01-572-6346

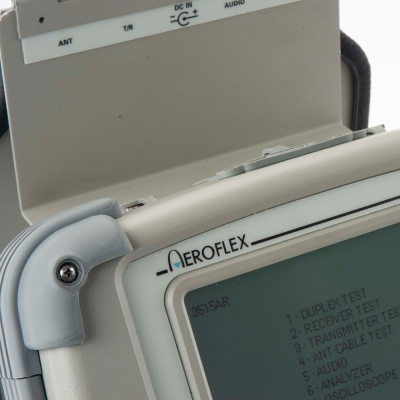

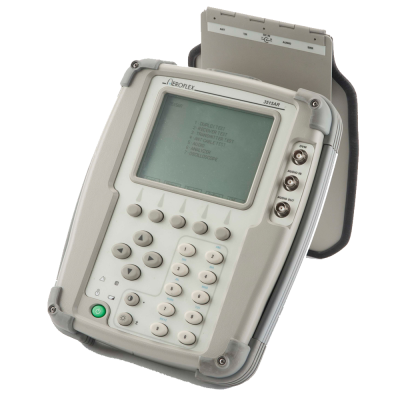

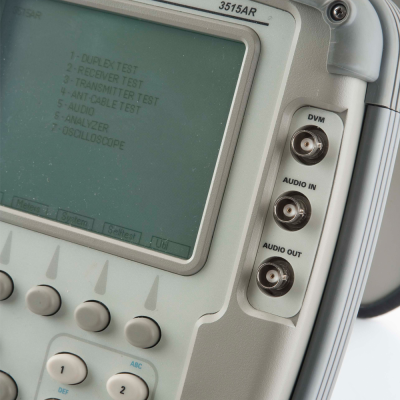

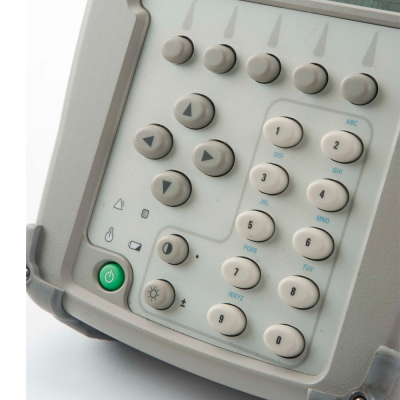

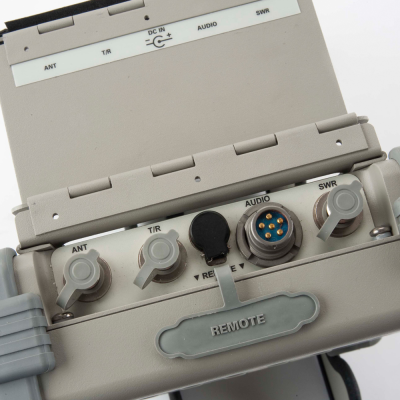

The Aeroflex 3515AR offers the latest in radio front-line testing, long battery life and superior performance. The 3515AR includes spectrum analyzer, oscilloscope and test script language for automating tests, incorporating test instructions, data collection, etc. It offers test scripts for radios and systems, including PRC-117F, PRC-148, fixed-wing and rotary-aircraft, vehicles, and data radios.
EXPORT CONTROL: This product is controlled for export under the International Traffic in Arms Regulations (ITAR). A license from the U.S. Department of State is required prior to the export of this product from the United States.

Stand-off tests of tactical radios from 2 MHz to 1 GHz frequency range
Isolates failures in nearly any platform’s radio, antenna, or cable
Runs tests in minutes without removing or disconnecting the radio
Measures high power —20 watts without an external attenuator, up to 200 watts with external attenuator
Minimal personnel training
Portable—weighs approximately 8 lbs with battery
Long-lasting battery—5 hours of operation and recharge in 4 hours
Rugged—meets Mil-PRF-28800F for humidity, altitude, shock, and vibration
Weatherproof case with operating range of -20° to +50°C
AM/FM transmitter tests
RF power
RF frequency error
AM modulation/FM deviation
Audio frequency counter
Receive Signal Strength Indicator (RSSI)
AM/FM receiver tests
DCS generator
Distortion
SINAD/sensitivity
Antenna/cable tests
VSWR
Distance to fault
Return loss
Cable loss
Talk Test (using handset and antenna)
