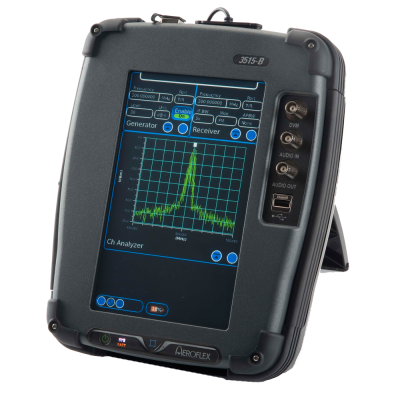

The 3515B is a first-line test system designed to verify that portable radios, man-pack radios, vehicle and aircraft radios are mission ready. The 3515B can quickly isolate problems and assess performance in a variety of tactical, airborne and data radios. The 3515B is rugged but also lightweight (approximately 8 lbs including battery) and features 4.5 hours of continuous operation on an internal battery. The 3515B also allows the user to test all aspects of the radio system—including the radio’s transmitter and receiver as well as RF cabling and antennas and audio systems —with powerful features typically found only in bench-top equipment. The 3515B also meets MIL-PRF-28800F Class II specifications for humidity, shock, and vibration, with an operating range of -0º C to +50ºC.
EXPORT CONTROL: This product is controlled for export under the International Traffic in Arms Regulations (ITAR). A license from the U.S. Department of State is required prior to the export of this product from the United States.

Next Generation Touch-Screen Operation
Guided radio test scripts
User-defined test screens with the standard ability to save and recall them for future use
Internal Battery with 4.5 Hours of operation on one charge, ensuring maximum portability
Lightweight Magnesium Alloy – approximately 8 lbs
0° to 55°C Operating Range; MIL-PRF-28800F Class 2
0.15ppm Timebase
Complete First-Line Test Support
AM, FM and APCO-P25 test support
Over-the-Air radio tests to ensure mission readiness of transmitters, receivers, antennae, microphones, and speakers
In-Vehicle cable and antenna sweeps to isolate cable faults, corroded connecters, and VSWR mismatches
Full Feature RF Test Functions
-140 dBm DANL Spectrum Analyzer
Multi-Function Oscilloscope
Tracking Generator for sweeping antennas and cables. It can also be used for measuring VSWR or return loss of antennas as well as finding the location of faults in cables in tough to find areas in aircraft and vehicles.
Precision RF Power measurements using external power sensor.
Analog demod measurements for modulation, distortion, and SINAD
Digital demod measurements for modulation fidelity and symbol deviation
RF Generator for determining receiver performance of both digital and analog radios
