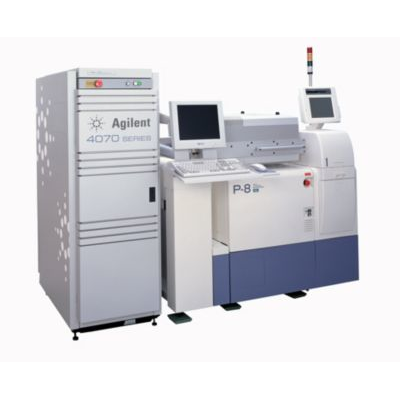

The Keysight 4072A advanced parametric tester with Keysight SPECS is designed to perform precision DC measurement, capacitance measurement, flash memory cell testing, and testing of other high-frequency applications. The system supports up to eight source monitor units (SMUs), two of which may be high-power SMUs (HPSMUs). Each SMU is self-calibrating and may be individually configured to force either current or voltage and simultaneously measure either voltage or current.

General features

Supports up to 2xHPSMU and up to 8 total SMUs

Low-leakage switching matrix, customizable from 12 to 48 fully-guarded Kelvin outputs

High-frequency switching matrix with integrated pulse generator control

8 auxiliary inputs and 48 extended path inputs for support of external instruments

Measurement capabilities

2 microvolt and 10 femtoamp measurement resolution (MPSMU and HPSMU)

+/- 200 Volts and +/- 1 Amp output capability (HPSMU)

1 kHz to 1 MHz capacitance frequency measurement range (using 4284A or E4980A)

+/- 1.6 Amp ground unit (GNDU)

HV-SPGU option measurement capabilities

+/-40 V output (80 V peak-to-peak) at high impedance

Pulse rise and fall times as fast as 20 ns

Three-level output pulse capability

Arbitrary Linear Waveform Generation (ALWG) function
