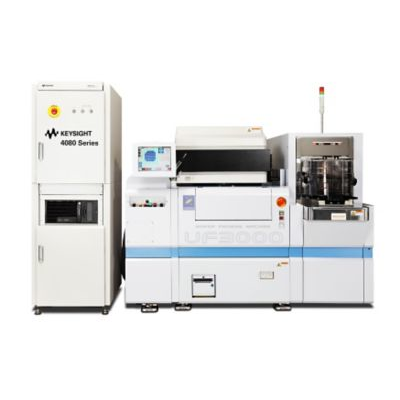

The Keysight 4082A is a high-throughput production parametric test system with advanced parallel testing capabilities, a high-speed capacitance measurement option, and full support for SEMI factory automation standards.

An efficient and complete parametric test solution requires exceptional software in addition to superior hardware. To meet these requirements, the 4082A has a versatile system software environment that is compatible with several Parametric Test Software solutions, including Keysight SPECS and Keysight SPECS-FA test shells.

Basic features

Standard low-current and ultra low-current matrix card configurations (12 to 48 pins)

Standard low-current version supports up to 2 x HPSMUs and up to 8 total SMUs

Ultra low-current version supports up to 2 x HRSMUs, up to 2 x HPSMUs and up to 8 total SMUs

8 auxiliary inputs and 48 extended path inputs for support of external instruments

Advanced features

High-frequency switching matrix option available (60 MHz bandwidth)

E4980A and HS-CMU options available for capacitance measurement

Asynchronous and synchronous parallel test capability

Measurement capabilities

2 microvolt and 1 femtoamp measurement resolution (HRSMU)

+/- 200 Volt and +/- 1 Amp output capability (HPSMU)

1 kHz to 2 MHz capacitance frequency measurement range (HS-CMU)

+/- 1.6 Amp ground unit (GNDU)

Software

4080 Series system software, SPECS and SPECS-FA all Linux based

SPECS and SPECS-FA support Keysights Virtual Multiple Testhead Technology for fast asynchronous parallel test

4070 Series SPECS and SPECS-FA test plans compatible with 4080 Series SPECS and SPECS-FA test plans
