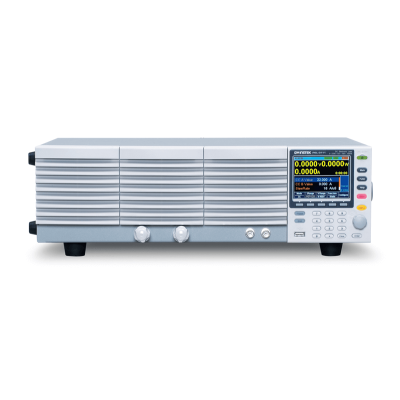

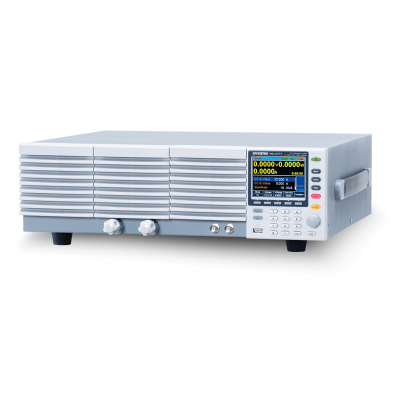

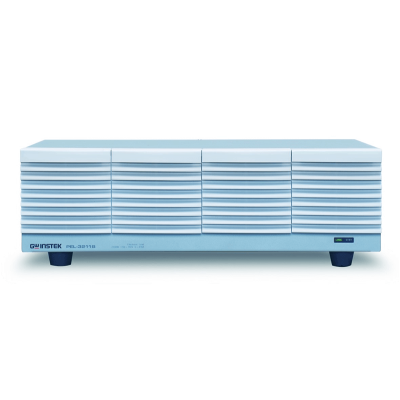

The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/_s current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 350W to 1500W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply. Model Item Voltage / Current / Power PEL-3021 DC Electronic Load 0 – 35A / 1.5 – 150V , 175W PEL-3041 DC Electronic Load 0 – 70A / 1.5 – 150V , 350W PEL-3111 DC Electronic Load 0 – 210A / 1.5 – 150V , 1050W PEL-3211 Booster 0 – 420A / 1.5 – 150V , 2100W PEL-3212 DC Electronic Load 0 – 420A / 1.5 – 150V , 2100W PEL-3323 DC Electronic Load 0 – 630A / 1.5 – 150V , 3150W PEL-3424 DC Electronic Load 0 – 840A / 1.5 – 150V , 4200W PEL-3535 DC Electronic Load 0 – 1050A / 1.5 – 150V , 5250W PEL-3322 DC Electronic Load 0 – 630A / 1.5 – 150V , 3150W PEL-3533 DC Electronic Load 0 – 1050A / 1.5 – 150V , 5250W PEL-3744 DC Electronic Load 0 – 1470A / 1.5 – 150V , 7350W PEL-3955 DC Electronic Load 0 – 1890A / 1.5 – 150V , 9450W
Operating voltage (DC)1.5V~150V
Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV

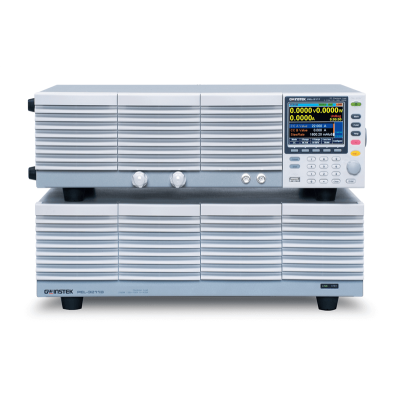

Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
Support of High Slew RateMax 16A/us
Run Program Function_GO/NO GO Test_
Sequence Function for High Efficient Load Simulations
Commands are compatible with Kikusui PLZ-4W model.
Dynamic(Switching) Function__0.0166Hz ~20kHz
Soft Start Function__Off / On(1~200ms, Res__1ms)
Adjustable OCP / OVP / OPP / UVP Setting
Short Circuit Function
Timer function : Elapsed Time of load on
Cut Off Time(Auto Load Off Timer )1s to 999h 59min 59s or Off
External Channel Control / Monitoring via Analog Control Connector
Setup Memories100 sets
3.5 Inch TFT LCD Display
Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB (Optional)
