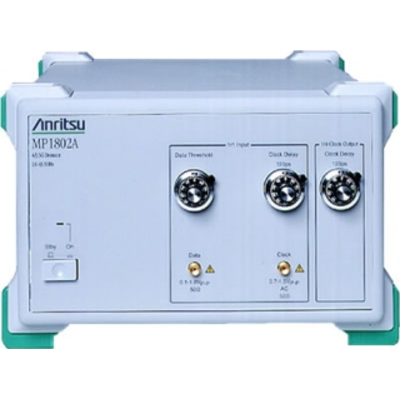

1×4 Demultiplexer for Dividing a Serial Signal of up to 43.5 Gb/s

The MP1802A is the industry recognized 1×4 demultiplexer and widely used for the development of high-speed component, modules and systems. The MP1802A can demultiplex a single serial maximum data input signal of 43.5 Gb/s and provide 4 parallel data outputs of up to 10.875 Gb/s each. Anritsu’s both MP1764 series single channel or MP1776A 4-channel Error Detectors are best compliment to the MP1802A for analyzing the demultiplexed signals.

The MP1802A is part of the Anritsu’s both 43.5G BER Test Systems (ME7750A and ME7760A). It offers independent clock delay adjustment functions for the 43.5G clock input and the 4 divided clock outputs. Threshold voltage adjustment for the 43.5 Gb/s data input is also available in the unit. Its sophisticated design makes it ideal for the evaluation and verification of high speed digital systems, components, modules, MUX/DEMUX devices beyond 40 Gb/s covering FEC and Non-FEC rates up to 43.5 Gb/s.

The compact size of the MP1802A saves on test lab space. Front panel keys allow easy operation of the unit. In current R&D and manufacturing of 40 Gb/s transmission systems, this MP1802A DEMUX unit is being used in conjunction with Anritsu 40G E/O and O/E converters for testing optical modules and systems.

This product has been discontinued.Replacement Model(s) : MP1804A
