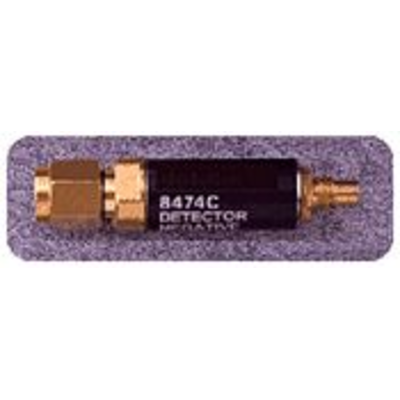

The Keysight 8474C is a high-performance detector using a gallium arsenide, planar-doped barrier detecting element. It features extremely flat frequency response over its entire band of operation and very good frequency response stability versus temperature. The Keysight 8474C is also very rugged with high resistance to ESD damage. The Keysight 8474C detector is available with a 3.5-mm (mates with SMA, 0.01 to 33 GHz) connector. This detector offers the options for optimal sqaure-law loads (Option 102) and for positive polarity output (option 103). Because the unit-to-unit frequency response tracking of this device is typically better than 0.3 dB, no matched response option is offered.

Frequency Range: 10 MHz to 33 GHzFrequency Response: 0.45 dB to 26.5 GHz, 0.7 dB to 33 GHzMaximum SWR: 1.4 to 26.5 GHz, 2.2 to 33 GHzLow Level Sensitivity: > 0.4 mV/uWMaximum Operating Input Power: 200 mWTypical Short-term Maximum Input Power (< 1 minute): 1 WOutput Polarity: NegativeInput Connector: 3.5 mm male
