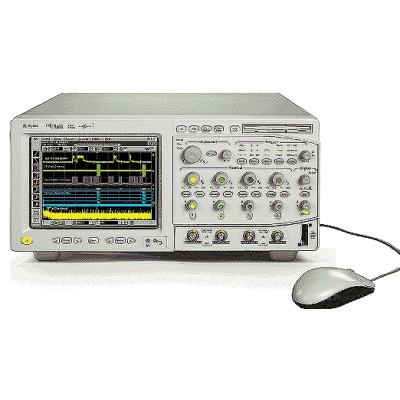

The Keysight 54832D 4+16-Channel 1 GHz Mixed-Signal Oscilloscope (MSO), with 4 scope channels and 16 timing channels, uniquely combines the detailed signal analysis of a scope with the multi-channel timing measurements and triggering of a logic analyzer. Digital and analog events are aligned in time so you can easily relate cause and effect in difficult mixed-signal, digital and analog troubleshooting situations. Now with the N5397A FPGA Dynamic Probe, the 16 logic channels can be used to look inside your FPGA.

The 54832D also incorporates Keysights innovative MegaZoom technology, now available up to an unprecedented 128 Mpts, that provides instant response and fast waveform update rates, even with the deepest memory being acquired. Mixed-signal triggering provides a complete set of triggering features across all 16 timing channels and 4 scope channels.

• Integrated 4 scope and 16 timing channels
• 1 GHz bandwidth
• Up to 4 GSa/s sample rate
• Up to 128 Mps optional memory,also available as after-purchase upgrades
• Standard 4 Mpts memory
• Simple, analog-like front panel with Windows GUI
• Time correlation option for the 16900/16700/1680/1690 series logic analyzer and scope
• Web-enable remote control and email on trigger
• Passive probes must be ordered separately (logic cable and probe included)
• N5397A FPGA Dynamic Probe Option
• E2681A EZJIT Jitter Analysis Software Option
• N5384A High-Speed Serial Data Analysis with Clock Recovery Software Option
• N5391A Low-Speed Serial Data Analysis Option for I2C and SPI
• E2698A Ethernet Mask Testing Option
• E2683A USB 2.0 Compliance Test Option
• E2625A Communications Mask Test Kit Option
• E2682A VoiceControl Option for hands-free operation
• E2699A My Infiniium Integration Package Option
• 1130A Series InfiniiMax 1.5 GHz Probe
• E5396A 17-Channel Soft Touch Connectorless Probe

• 1 GHzBandwidth
•  4+16 Channels
• 4 GSa/s Maximum Sample Rate
• 2 Mpts/ch (4 Mpts max.) Standand Acquisition Memory
• 64 Mpts/ch (128 Mpts max.)  Optional Maximum  Acquisition Memory
