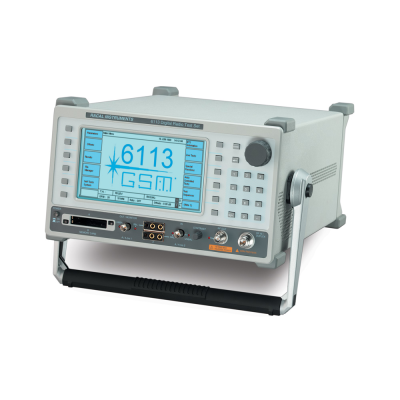

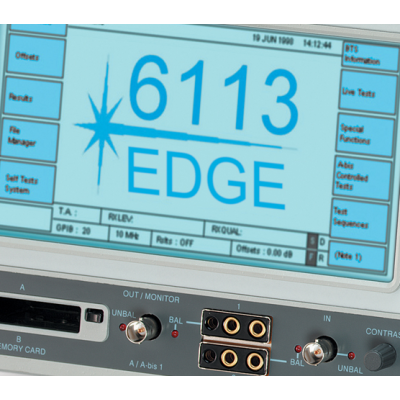

Aeroflex’s 6113 Digital Radio Test Set provides a wide range of test and measurement functions to enable fast manual or automatic testing of GSM/GPRS/EDGE 850, 900, 1800 and 1900 Base Transceiver Stations (BTSs). Applications include installation and commissioning, routine maintenance, fault finding and final unit production testing.
A-bis Interface – In order to perform comprehensive, real environment, standalone testing of a BTS, the test set must be capable of controlling the BTS. The 6113 is unique in its ability to measure RF transmission as well as connecting to the BTS via the A-bis interface. Through the use of the specific BTS manufacturers’ Operation & Maintenance (O&M) commands, the 6113 is able to emulate the Base Station Controller (BSC) and take complete control of the BTS. This is accomplished automatically without the need for user intervention.

GSM/GPRS/EDGE 850, 900, 1800 and 1900 BTS testing
Field portable, easy to use, fully integrated
Options to control the major BTS types
Test Sequences for full customization
Optimized for installation and commissioning, routine maintenance, BTS refurbishment, fault finding and production testing
A-bis interface for full BTS control and Bit Error Ratio (BER) measurements
Two PC card slots for data storage, field upgrades and software enhancements
Options for GPRS, EDGE and AMR base station tests
