LeCroy Passive Probes PP020-1 Oscilloscope Probes
Product Details
-
Manufacturer: LeCroy
-
Model: PP020-1
-
Description:
500 MHz Passive Probe for WaveSurfer3000, 10:1, 10 MOhm

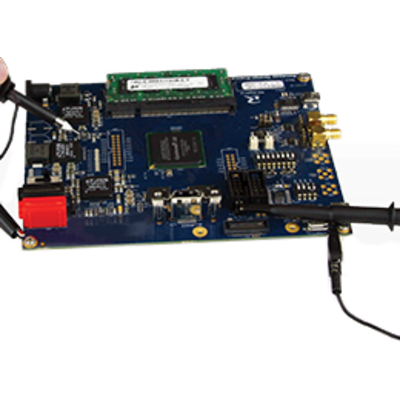

Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 M_. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input.
Each passive probe is recommended for a certain oscilloscope, using the right passive probe with the right oscilloscope means that the probe will be properly compensated across the entire bandwidth. Using probes with a different oscilloscope will only let you compensate for low frequencies.
Passive Probes
Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 M_. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input.
Each passive probe is recommended for a certain oscilloscope, using the right passive probe with the right oscilloscope means that the probe will be properly compensated across the entire bandwidth. Using probes with a different oscilloscope will only let you compensate for low frequencies.
Bandwidth
Input R
Input C
Attenuation
Maximum Voltage
Diameter
Recommended Oscilloscope
500 MHz
10 M_
11 pF
10:01
500 V
5 mm
1,2,12, 13
500 MHz
10 M_
12 pF
10:01
600 V
5 mm
3, 11
500 MHz
10 M_
9.5 pF
10:01
400 V
2.5 mm
4
500 MHz
10 M_
9.5 pF
10:01
400 V
2.5 mm
5, 7, 9, 15, 16
500 MHz
10 M_
9.5 pF
10:01
400 V
2.5 mm
4, 6, 8, 17
500 MHz
10 M_
9.5 pF
10:01
400 V
5 mm
4, 6, 8, 17
200 MHz
10 M_
12.5 pF
10:01
600 V
5 mm
10
500 MHz
10 M_
9.5 pF
10:01
400 V
5 mm
5, 7, 9, 15, 16
300 MHz/10 MHz
10 M_/1 M_
12 pF/46 pF
10:1/1:1
600 V
5 mm
14
200 MHz
10 M_
12 pF
10:01
350 V
5 mm
18
500 MHz
10 M_
10 pF
10:01
350 V
5 mm
18, 19
200 MHz
10 M_
12 pF
10:01
500 V
5 mm
20
500 MHz
10 M_
11 pF
10:01
500 V
5 mm
20
9300 Series
11
WaveJet(A) Series (= 350 MHz)
LC Series
12
WavePro 900 Series
LT Series
13
WavePro 7000 Series
WaveSurfer 400 Series
14
WaveAce Series (200 MHz)
WaveRunner 6000(A) Series
15
WavePro 7 Zi(A) Series
WaveRunner Xi(A) Series (= 600 MHz)
16
WaveMaster 8 Zi(A) Series
WaveRunner Xi(A) (1 GHz – 2 GHz)
17
WaveRunner 6 Zi Series
WaveSurfer Xs(A,B) Series (= 600 MHz)
18
HDO4000 Series (200 MHz)
WaveSurfer Xs(A,B) Series (1 GHz)
19
All HDO Series (>=350 MHz)
WaveJet(A) Series (= 200 MHz)
20
WaveSurfer 3000 Series
