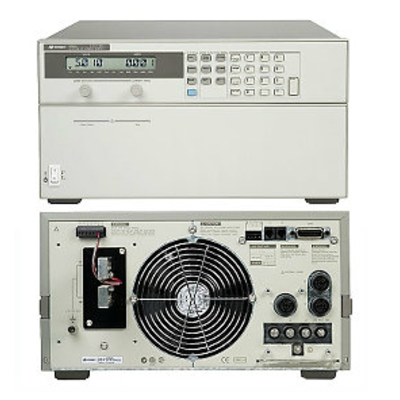

Hp/Agilent/Keysight 6684A 5000 Watt System Power Supply, 40V, 128A

Product Details

  • Manufacturer: Hp/Agilent/Keysight

  • Model: 6684A

  • Description:

    Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 5000W, GPIB 6680A-6684A provide low output ripple and noise…

Sort By

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 5000W, GPIB 6680A-6684A provide low output ripple and noise selectable compensation for inductive loads analog control of output voltage and current and fan-speed control to minimize acoustic noise.

The Keysight 5120W, GPIB, single output 6684A is a reliable supply with easy integration for manufacturing test, and provides stable and reliable DC power enhanced with extensive protection features.

Output Ratings

  • Voltage: 0 to 40 V
  • Current: 0 to 128 A

Programming accuracy at (at 25 ± 5°C)

  • Voltage 0.04% + 40 mV
  • Current 0.1% + 65 mA

Ripple and Noise (from 20 Hz to 20 MHz)

  • Voltage rms: 1.0 mV
  • Peak-to-peak: 10 mV

6684A-A6J

ANSI Z540-1-1994 Calibration

6684A-J06

Improved immunity to lightning

6684A-UK6

Commercial calibration certificate with test data

6684A-208

DC power supply 180-235V,3 phase AC,50/60Hz INPUT (use with power cord opt 861)

6684A-400

360-440V,3 phase AC,50/60Hz INPUT (use with power cord opt 862)
