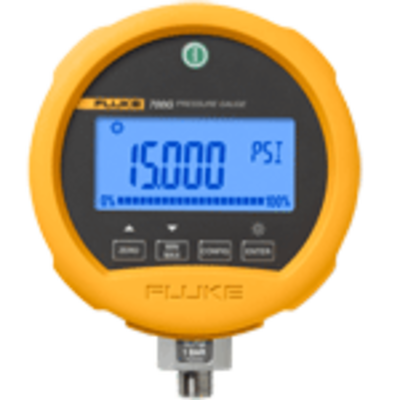

Fluke 700G Precision Pressure Test Guage

Product Details

  • Manufacturer: Fluke

  • Model: 700G01

  • Description:

    Portable, high-quality round pressure gauge calibrator for fast and accurate calibration test results from -10 to +10 inH2O (-20 mbar to 20 mbar)

No Current Sellers for Fluke 700G01

Sign Up/Login to get notified when someone has one for sale.

Pressure Gauges Designed to Handle All Your Pressure Calibration Needs

With best-in-class accuracy and measurements, the Fluke 700G series precision pressure test gauges were designed to handle all of your pressure calibration needs. The 700G series pressure test gauges are rugged and easy to use, with twenty three models ranging from 10 inH2O/20 mbar to 10,000 psi/690 bar including absolute pressure ranges. When combined with the Fluke 700PTPK or 700HTPK you’ve got a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump.

700G Series Precision Pressure Gauge Calibrator

Precision pressure measurement from 10 inH2O/20 mbar to 10,000 psi/690 bar

Absolute pressure measurement ranges 15, 30, 100, 300 psia Accuracy to 0.05 % of full scale Reference class gauge accuracies to 0.04 % of reading Easy to use, rugged construction for reliable performance CSA; Class 1, Div 2, Groups A-D rating ATEX rating: II 3 G Ex nA IIB T6 Combine with the 700PTPK or 700HTPK pump kits for a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump Log up to 8,493 pressure measurements to memory (requires 700G/TRACK software) Three-year warranty

Fluke-700PTPK Pneumatic Test Pump Kit

Combine with any Fluke-700G Series Gauge, 1,000 psi (69 bar) or less, to make a complete pressure testing kit

Generate pressure up to 600 psi, 40 bar with the 700PTP-1 test pump Connect the 700G Series gauge directly to the included PTP-1 hand pump Includes hoses and adapters for connecting to the pressure device to be tested Hard case protects pump and gauge and allows gauge to remain connected to the pump

Fluke-700HTPK Hydraulic Test Pump Kit

Combine with any Fluke-700G Series Gauge, 1,000 psi (69 bar) range or greater, to make a complete pressure testing kit

Generate pressure up to 10,000 psi, 690 bar with the included 700HTP-2 test pump Connect the 700G Series gauge directly to the HTP-2 hand pump Includes 700HTH-1 hose kit and adapters for connecting to the pressure device to be tested Hard case protects pump and gauge and allows gauge to remain connected to the pump

700G/TRACK Logging Software

Use with 700G Series gauges to perform real time data logging to a PC

Download logging configurations to the 700G Series gauges for a remote logging event Configure logging event reading rate, duration and measurement units Upload measurements logged remotely and display or export measurements Includes communication cable for connection to a PC



Specifications
Model Range Resolution Accuracy Burst Pressure
psi bar psi bar psi bar
700G01 -10 to 10 inH2O -20 to 20 mbar 0.001 inH2 0.001 mbar Positive pressure ±0.1 % of range
Vacuum ± 0.1 % of range		 3 psi 210 mbar
700G02 -30 to 30 inH2O -70 mbar to 70 mbar 0.0001 psi 0.001 mbar 5 psi 350 mbar
700G04 -14 to 15 psi -.97 to 1 bar 0.001 psi 0.0001 bar Positive pressure:
± 0.05 % FS
Vacuum:
± 0.1 % FS		 500 psi 34 bar
700G05 -14 to 30 psi -.97 to 2 bar 0.001 psi 0.0001 bar 500 psi 34 bar
700G06 -12 to 100 psi -.83 to 6.9 bar 0.01 psi 0.0001 bar 1000 psi 69 bar
700G27 -12 to 300 psi -.83 to 20 bar 0.01 psi 0.001 bar 2000 psi 138 bar
700G07 -12 to 500 psi -.83 to 34 bar 0.01 psi 0.001 bar 2000 psi 138 bar
700G08 -14 to 1000 psi -.97 to 69 bar 0.1 psi 0.001 bar 10000 psi 690 bar
700G29 -14 to 3000 psi -.97 to 200 bar 0.1 psi 0.01 bar 10000 psi 690 bar
700G30 -14 to 5000 psi -.97 to 340 bar 0.1 psi 0.01 bar 10000 psi 690 bar
700G31 -14 to 10000 psi -.97 to 690 bar 0.1 psi 0.01 bar 15000 psi 1035 bar
700GA4 0 to 15 psia 0 to 1 bar absolute 0.001 psi 0.0001 bar ± 0.05 % of range 60 psi 4 bar
700GA5 0 to 30 psia 0 to 2 bar absolute 0.001 psi 0.0001 bar 120 psi 8 bar
700GA6 0 to 100 psia 0 to 6.9 bar absolute 0.01 psi 0.0001 bar 400 psi 27 bar
700GA27 0 to 300 psia 0 to 20 bar absolute 0.01 psi 0.001 bar 1200 psi 80 bar
700RG05 -14 to 30 psi 0.97 to 2 bar 0.001 psi 0.0001 bar Positive pressure, ±0.04 % of reading +.01 % of range,
Vacuum ± 0.05 % of range		 90 psi 6 bar
700RG06 -12 to 100 psi -0.83 to 6.9bar 0.01 psi 0.001 bar Positive pressure, ±0.04 % of reading +.01 % of range,
Vacuum ±± 0.1 % of range		 400 bar 27 bar
700RG07 -12 to 500 psi -0.83 to 34 bar 0.01 psi 0.001 bar 2000 psi 138 bar
700RG08 -14 to 1000 psi -0.97 to 69 bar 0.1 psi 0.001 bar 4000 psi 275 bar
700RG29 -14 to 3000 psi -0.97 to 1 bar 0.001 psi 0.0001 bar 10000 psi 690 bar
700RG30 -14 to 5000 psi -0.97 to 340 bar 0.1 psi 0.01 bar 20000 psi 1380 bar
Temperature
compensation		 15°C to 35°C (59°F to 95°F) to rated accuracy
For temperatures from -10°C to 15°C and 35°C to 55°C, add .003% FS/°C
Media
compatibility
  • 15, 30 psi: any clean dry non-corrosive gas
  • 100, 300, 1000 psi: any liquids or gases compatible with 316 stainless steel and start above 1000 psi :any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
Mechanical specifications
Dimensions
(HxWxD)		 5 x 4.5 x 1.5 in (12.7 x 11.4 x 3.7 cm)
Pressure
connection		 1/4 in NPT Male
Housing/
Weight		 Cast ZNAL/0.56 kg (1.22 lb) with holster
Display 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
Power Three AA alkaline batteries
Battery life 1,500 hours without backlight (continuous on)
2,000 hours at slow sample rate
