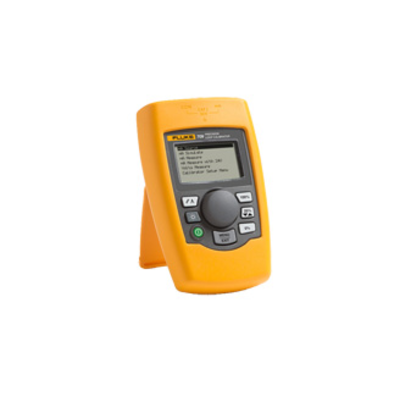

The Fluke 709 Precision Loop Calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas. The 709 offers:
Best-in-class accuracy at 0.01% reading
Small rugged design operates on (6) standard AAA batteries
Intuitive user interface with Quick-Set knob for fast setup, easy use
Built-in selectable 250 resistor for HART communication
24 V dc loop power with mA Measure Mode (-25% to 125%)
Resolution of 1 A on mA ranges and 1 mV on voltages ranges
Simple two-wire connection for all measurements
Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
Variable step & ramp time in seconds
Adjustable span selection (0 to 20 mA or 4 to 20 mA)
Valve Test (simulate defined mA values with % keys)
