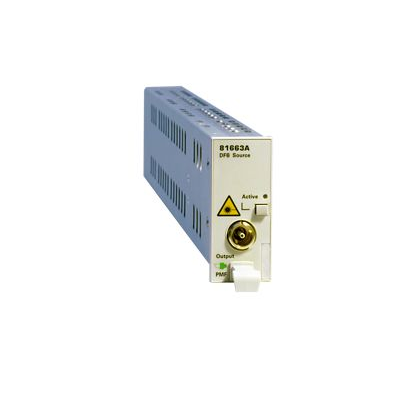

The Keysight 81663A Distributed Feedback Laser Sources are part of the Keysight Lightwave Solution Platform, and best suited for amplifier test and WDM system test applications. Keysight covers PON and common WDM wavelengths with its 81663A Distributed Feedback (DFB) laser source modules.

Features:

81663A

Center Wavelength

1310, 1490, 1510, 1550, 1625 nm
(Options 131, 149, 151, 155, 162)

Maximum output power

> +13 dBm (20 mW)

Wavelength stability (24h)

5 pm

Power stability (24h)

0.01 dB

Built-in isolator

Yes

Internal modulation

Yes

Benefits:

High optical output power offers the flexibility in test environment and enables test and characterization of nonlinear effects which the customer could not do so far.

The precise tunability allows to shift the center wavelengthby one DWDM transmission channel to the adjacent channel in dense WDM systems.

The coherence control allows to change the linewidth of the laser to avoid problems with stimulated Brillioun scattering, and effects generated by unwanted cavities.

The built-in digital modulation enables applications like time-domain extinction testing of EDFA noise figure.

The built-in isolator ensures laser stability, even when reflections are present in the optical path.

Key performance specifications

High optical output power: +13 dBm

Wavelength Stability: +/- 0.002nm

Fine-tuning range: +/- 850pm

Power stability: 0.003dB

Features

Built-in digital modulation enables applications like time-domain extinction testing of EDFA noise figure.

Built-in coherence control

Built-in isolator
