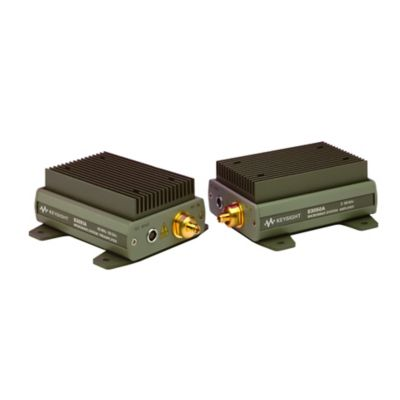

The Keysight 83051A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators. This amplifier provides power where you need it to recover system losses and to boost available power in RF and microwave ATE systems. The ultrabroad bandwidth from 45 MHz to 50 GHz allows the designer to replace several narrow bandwidth amplifiers with a single Keysight amplifier, eliminating the need for crossover networks or multiple bias supplies.

Superior RF performance

Gain of more than 23dB

P1dB of more than 8dBm (to 45GHz),6dBm (to 50GHz)

Noise figure of less than 12dB to 2GHz,6dB to 26.5GHz,10 to 50GHz (typ)

Connectors Type

Rf connectors: 2.4mm(f)

DC Detector output connector: BNC (f)

Bias Option

+12V@425mA,-12V@50mA

Works with 87421A 25W Power Supply
