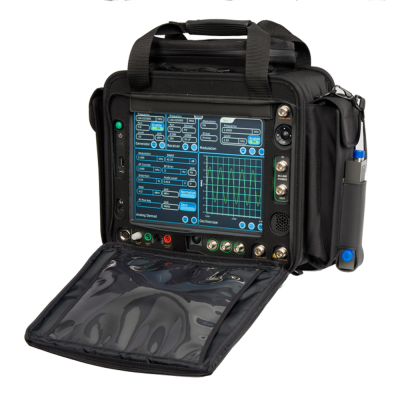

Improving upon the very popular 8800 platform, the new 8800S Digital Radio Test Set supports higher direct power measurements up to 125 Watts. With its hybrid portable design, the industry’s largest color touch-screen display, a measurement range from -140 dBm to 500 Watts, and unmatched analog and digital test features, the 8800 offers RF professionals a whole new experience in radio test.
Weighing only 17 lbs (7.71 kg), with a 2.5+ hour internal battery, and 30 G shock rating, now test professionals will no longer compromise portability for critical test features; and vice versa. Advanced features ranging from Auto-Test to digital modulation analysis plots to even an internal 500 W (4% accuracy) in-line power meter are all available within a one-box solution!

Dimensions: 34.3 cm (W) x 29.3 cm (L) x 14.6 cm (D) <13.5 × 11.54 × 5.75 inches>
Industry’s Largest Display Size: 30.5 cm <12 inches>
Base Unit Weight: 7.71 kg <17 lbs>
Internal Battery: 2.5+ Hours of Operation
Rugged: 30 G Shock, MIL-STD 28800F Class 3
Measurement Range: -140 dBm to 500 Watts
Power Accuracy: 10% (6% typical)
AM / FM
P25
P25 Phase II
DMR (MOTOTRBO)
NXDN
dPMR
ARIB T98
PTC
Automated Test and Alignment
New Wideband Analyzer
Fast Channel Analyzer with Six Color Markers
Fast Stack: Test functions can be stacked on one another and instantly accessed
Presets: Ultra-fast store and recall of test setups
Frequency Lists: User-defined frequency lists with editable Tx Frequency, Tx Level, and Rx Frequency entries
Audio Record/Playback: Digital audio quality performance tests
Color Meters: Color indicates pass/fail results on each meter
Digital Modulation Plots: Distribution, Constellation, and Eye Diagram
TDMA Burst Profile Plot: For DMR only; includes a burst “Mask” for visual pass/fail
DMM: Simple measurement of Voltage, Current, and Ohms; required for automated test and alignment on mobile radios
In-Line Power Meter: Internal or External; 500 W input with 4% Accuracy
Tracking Generator: VSWR, Return Loss, DTF, and Tuning Duplexers
Multi-Language GUI:English, Simplified Chinese, Traditional Chinese, Spanish, Portuguese, Malay/Indonesian, Korean, Arabic, Polish, Russian, Japanese, German, and French
