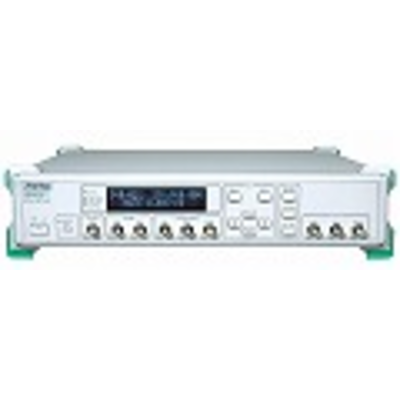

MP8931A Bit Error Rate Tester is the only digital broadcast I / F is a DVB-ASI, DVB-SPI and conventional NRZ I / F with a bit error measurement.ItemSpecificationTest interface NRZ, DVB-SPI, DVB-ASI Remote control interface GBIBRS-232CInternal clock frecuency 1 kHz__155 MHzExternal clock frquency 1 kHz__155 MHz, TTL/ECL, 75/1MDispatched measured pattern PN9, PN9_INV, PN15, PN15_INV, PN23, PN23_INV,ALL’0’, ALL’1’, ’1010’Error insertion No, manual insertion sequence(10-3,10-4,10-5,10-6,10-7)Bits set measurement time Test time (0__59seconds, 0__59minutes, 0__999hours) Test bits (103__1015)manualAUTOSYNC (Out of work time) ON (remeasurement after resynchronization) OFF (without re-synchronization, continuous measurement)DVB packet interface type 204 : (1)187(16) packets 188 : (1)187 packets 204 : (13)184(16) packets 188 : (1+3)184 packets _204 : (1)203 packets 204 : (1+3)+200 packetsThroughput settings 1 MHz__27 MHz

This product has been discontinued.
