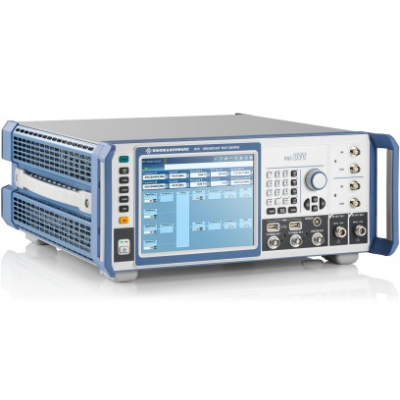

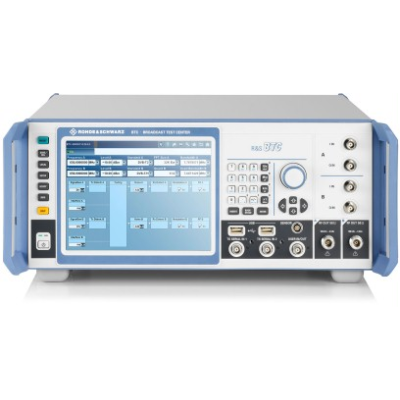

The R&S BTC broadcast test center is a reference signal generator featuring analysis functions and automated tests for audio, video and multimedia applications. It is a unique combination of outstanding technical features and a modular, flexible design to meet the highest demands and latest transmission technologies such as DVB-S2X.The multistandard R&S BTC offers a complete DUT environment in a single instrument. As a high-end signal generator, it generates RF signals for all global broadcasting standards, performs transmission simulation and, at the same time, makes audio and video analyses for the DUTs. All this is made possible by using diverse interface, generator and analysis modules.Due to its extremely fine scalability, the R&S BTC can be tailored to meet different customer and test requirements while simultaneously optimizing costs. This eliminates the need for expensive and time-consuming test setups with many separate T&M instruments.Integrated and automated test sequence control as well as test suites ensure that test results are reproducible while reducing test times.

Signal generation and DUT analysis
Modular design
Automated test sequences in line with recognized test specifications
Realtime video/audio transport stream generation
Realtime signal generation for all global broadcasting standards

R&S BTC : Broadcast Test Center
R&S BTC-B3100 : Low Phase Noise
R&S BTC-B3103 : 100 kHz to 3 GHz
R&S BTC-B3106 : 100 kHz to 6 GHz
R&S BTC-B3203 : 100 kHz to 3 GHz
R&S BTC-B3206 : 100 kHz to 6 GHz
R&S BTC-B11 : Baseband Main Module, one I/Q path to RF
R&S BTC-B12 : Baseband Main Module, two I/Q paths to RF
R&S BTC-B1 : Baseband Generator, 1st channel
R&S BTC-B2 : Baseband Generator, 2nd channel
R&S BTC-K2500 : Extended I/Q Interfaces
R&S BTC-K20 : Mutimedia Generation Suite
R&S BTC-K516 : DVB-T2 Coder
R&S BTC-PK516 : DVB-T2 Coder Package
R&S BTC-K501 : DVB-T/DVB-H Coder
R&S BTC-PK501 : DVB-T/H Coder Package
R&S BTC-K511 : DAB/DAB+/T-DBM Coder
R&S BTC-PK511 : T-DMB/DAB Coder Package
R&S BTC-K518 : ATSC M/H, 8VSB Coder
R&S BTC-PK518 : ATSC-M/H 8 VSB Coder Package
R&S BTC-K512 : DTMB Coder (GB20600-2006)
R&S BTC-PK512 : DTMB (GB20600-2006) Coder Package
R&S BTC-K515 : CMMB Coder
R&S BTC-PK515 : CMMB Coder Package
R&S BTC-K506 : ISDB-T/ISDB-T(B)/ISDB-T(SB) Coder
R&S BTC-PK506 : ISDB-T/TSB/TB Coder Package
R&S BTC-K517 : DVB-C2 Coder
R&S BTC-PK517 : DVB-C2 Coder Package
R&S BTC-K502 : J.83/A/B/C Coder (DVB-C, US-Cable, ISDB-C)
R&S BTC-PK502 : DVB/ISDB-C/J.83/B Coder Package
R&S BTC-K510 : DVB-S2X, realtime coder
R&S BTC-K508 : DVB-S/S2, realtime coder
R&S BTC-PK508 : DVB-S/S2 realtime coder option package (SL)
R&S BTC-K509 : DIRECTV Legacy Coder
R&S BTC-K570 : AM/FM RDS RDBS Coder
R&S BTC-PK570 : AM / FM / RDS Coder Package
R&S BTC-K595 : ATV Multistandard Coder
R&S BTC-PK595 : ATV Multistandard Package
R&S BTC-K35 : Multi ARB Waveform Generator, (SL)
R&S BTC-B1031 : Path A Fading Simulator, (HW opt.)
R&S BTC-B1032 : Path B Fading Simulator, (HW opt.)
R&S BTC-B1034 : Fading Simulator (path A and path B)
R&S BTC-K1031 : Dynamic Fading
R&S BTC-K1034 : MIMO Fading and Routing
R&S BTC-K1040 : Additive White Gaussian Noise
R&S BTC-PK1040 : AWGN Generator Package
R&S BTC-K1043 : Extended AWGN Generator
R&S BTC-PK1043 : Extended AWGN Generator, option package (SL)
R&S BTC-PK1200 : Distortion Simulation Package
R&S VT-B2350 : MHL RX/TX
R&S VT-K355 : MHL CTS System Sink Test
R&S VT-K2355 : MHL CTS System Source Test
R&S VT-K2356 : CBUS Tracer
R&S VT-B2360 : HDMI RX 225 MHz
R&S VT-B2361 : HDMI RX 300 MHz
R&S VT-K2365 : HDMI CTS Source Test
R&S VT-K2100 : Video Analysis
R&S VT-K2110 : A/V Inspection
R&S VT-K2111 : A/V Distortion Analysis
R&S VT-K2150 : Audio Analysis
R&S BTC-KT3311 : NorDig Test Suite
R&S BTC-KT3312 : E-Book Test Suite
R&S VT-KT3351 : R&S AVBrun, MHL CTS Sink Test
R&S VT-KT3352 : R&S AVBrun, MHL CTS Source Test
R&S LIB-K51 : T-DMB/DAB streams
R&S LIB-K53 : DAB+ Streams
R&S LIB-K54 : ISDB-T(B) Transport Streams
R&S LIB-K55 : CMMB Transport Streams
R&S LIB-K56 : ATSC and ATSC Mobile DTV streams
R&S LIB-K57 : DVB-T2 MI Streams
R&S LIB-K58 : EMC Streams
R&S LIB-K59 : DMB Streams, France
R&S LIB-K70 : Basic Stream Library
R&S LIB-K71 : SDTV Extended Library
R&S LIB-K72 : Extended HDTV Library
R&S LIB-K73 : 3D TV Library
R&S WV-K801 : T-DMB/DAB Waveforms
R&S WV-K802 : DVB-H Waveforms
R&S WV-K803 : DRM Waveforms
R&S WV-K804 : HD Radio Waveforms
R&S WV-K809 : DVB-T2 Waveforms
R&S WV-K811 : DRM+ Waveforms
R&S WV-K812 : ISDB-S Waveforms
R&S WV-K814 : MoCA Waveforms
R&S WV-K815 : ISDB-Tmm Waveforms
R&S WV-K816 : Analog Signals
R&S WV-K817 : DVB-C2 WAVEFORMS
R&S WV-K1114 : Digital TV Interferers
R&S WV-K1116 : Cable Interferers
R&S WV-K1123 : Satellite Interferers
R&S WV-K1140 : Digital Standard GSM / EDGE
R&S WV-K1141 : Digital Standard EDGE Evolution
R&S WV-K1142 : Digital Standard 3GPP FDD
R&S WV-K1144 : Digital Standard GPS 1 Satellite
R&S WV-K1146 : Digital Standard CDMA2000
R&S WV-K1147 : Digital Standard 1xEV-DO
R&S WV-K1149 : Digital Standard IEEE 802.16
R&S WV-K1150 : Digital Standard TD-SCDMA
R&S WV-K1151 : Digital Standard TD-SCDMA Enhanced
R&S WV-K1154 : Digital Standard IEE 802.11a/b/g/n
R&S WV-K1155 : Digital Standard EUTRA/LTE
R&S WV-K1160 : Digital Standard Bluetooth EDR
R&S WV-K1161 : Multicarrier CW Signal Generation
R&S WV-K1162 : Additive White Gaussian Noise
R&S WV-K1168 : Digital Standard TETRA Release 2
R&S WV-K1183 : Digital Standard 3GPP FDD HSP/HSPA+
R&S WV-K1184 : Digital Standard LTE Release 9
R&S WV-K1185 : Digital Standard LTE Release 10
R&S WV-K1186 : Digital Standard IEE 802.11ac
R&S WV-K1187 : Digital Standard 1xEV-DO Rev.B
R&S WV-K1189 : Digital Standard NFC A/B/F
R&S ZZA-KN4 : 19" Rack Adapter
R&S PSL-Z2 : USB Keyboard (US character set)
