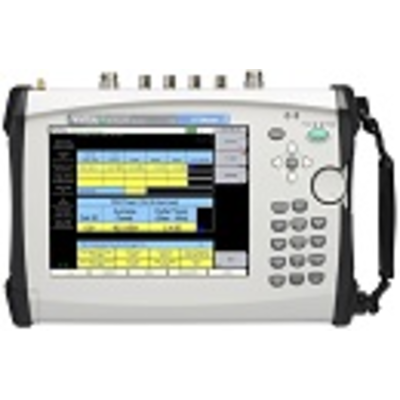

The BTS Master MT8220T is Anritsus third generation high-performance handheld base station analyzer that has been specifically developed to advance the support for 4G wireless networks as well as installed 2G, 3G and WiMAX networks. The MT8220T provides 20 MHz bandwidth modulation quality for LTE eNodeB testing and is equipped with a high-contrast, touch screen display and backlit key panel making it simple to use in both bright sunlight and dim conditions.The BTS Master MT8220T Base Station Analyzer is the essential multi-function instrument for senior wireless technicians and RF engineers to accurately and quickly verify the installation and commissioning of base stations for optimal wireless network performance and for the on-going maintenance and troubleshooting to keep wireless network infrastructure fine-tuned. A standard three-year warranty demonstrates world-class reliability and brings peace-of-mind to owning and using the MT8220T BTS Master.
The signal analyzers for 2G, 3G and 4G networks can test the RF quality and modulation quality of a wireless signal to verify the performance of virtually every subsystem in a base station’s transmitter. With the downlink over-the-air (OTA) quality tests included with each signal analysis option you can test the performance of transmitters that are difficult to access like remote radio heads (RRH), troubleshoot coverage problems and for LTE and TD-LTE, check that the MIMO configuration is correctly working.
The BTS Master MT8220T is small, lightweight and battery operated making it easy for the technician to use it anywhere at a cell site. With less than 5 minute warm-up time you get more useful battery life and you can start making measurements sooner. A GPS receiver is a standard feature allowing convenient mapping and triangulation of problematic interference signals in conjunction with Anritsu’s interference hunting solutions.
When it comes to meeting key performance indicators (KPI) such as dropped calls, call denial or call blocking rates owing to a malfunction at the cell site or interference, the BTS Master MT8220T is the all-in-one instrument that you can count on for quick problem resolution. For network operators, sub-contractors and installers it is the only fully integrated, touch screen hand held tool which combines line sweeping, comprehensive signal analysis with MIMO testing, ultra-sensitive spectrum analysis and sophisticated interference tracking in a compact, easy-to-use instrument.

Standard Functionality and Specifications Cable and Antenna Analyzer

400 MHz to 6 GHz
Measurements: RL, VSWR, Cable Loss, DTF, Phase (1- and 2-port), Gain
2-port gain measurement uncertainty: < 0.45 dB
2-port dynamic range: > 100 dB, typical 110 dB (400 MHz to 2800 MHz)
RF immunity: +17 dBm on-channel, +10 dBm on-frequency
Calibration: OSL and FlexCal

Spectrum Analyzer

150 kHz to 7.1 GHz
Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Field Strength, Spectral Emissions
Dynamic range: > 95 dB in 1 Hz RBW
DANL: 163 dBm in 1 Hz RBW
Phase noise: 100 dBc/Hz @ 10 kHz offset
Frequency accuracy: 25 ppb with GPS On
Fast, Performance, No FFT and Burst Detect sweep modes

Power Meter

10 MHz to 7.1 GHz

GPS Receiver

With 2000-1760-R Antenna
3-year warranty

2-port Cable and Antenna Analyzer 400 MHz to 6 GHz
Spectrum Analyzer 150 kHz to 7.1 GHz
Power Meter 10 MHz to 7.1 GHz
GPS Receiver with Antenna
Bias Tee
High Accuracy Power Meter (up to 26 GHz with external sensor)
Interference Analyzer with Mapping
Channel Scanner
Vector Signal Generator 400 MHz to 6 GHz
Signal Analyzers

LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
TD-SCDMA/HSPA+
CDMA, EV-DO
Fixed and Mobile WiMAX

Standard three-year warranty (battery one-year warranty)

MT8220T : BTS Master Base Station Analyzer
Included : 2-port Cable and Antenna Analyzer 400 MHz to 6 GHz
Included : Spectrum Analyzer 150 kHz to 7.1 GHz
Included : Power Meter 10 MHz to 7.1 GHz
Included : GPS Receiver with 2000-1760-R Antenna
Included : 3-year warranty
MT8220T-0010 : Bias Tee
MT8220T-0019 : High Accuracy Power Meter (Requires USB Power Sensor)
MT8220T-0025 : Interference Analyzer
MT8220T-0027 : Channel Scanner
MT8220T-0024 : I/Q Waveform Capture
MT8220T-0089 : Zero-Span IF Output (30 MHz IF Bandwidth)
MT8220T-0090 : Gated Sweep
MT8220T-0431 : Coverage Mapping
MT8220T-0023 : Vector Signal Generator
MT8220T-0880 : GSM/GPRS/EDGE Measurements
MT8220T-0881 : W-CDMA/HSPA+ Measurements
MT8220T-0882 : TD-SCDMA/HSPA+ Measurements
MT8220T-0883 : LTE/LTE-A FDD/TDD Measurements
MT8220T-0884 : CDMA/EV-DO Measurements
MT8220T-0885 : WiMAX Fixed/Mobile Measurements
MT8220T-0098 : Standard Calibration to ISO/IEC 17025:2005
MT8220T-0099 : Premium Calibration to ISO/IEC 17025:2005 plus test data
MT8220T-ES510 : 5 Year Extended Service – Return to Anritsu Repair Only
MT8220T-ES312 : 3 Year Extended Service – Return to Anritsu Standard Calibration
MT8220T-ES512 : 5 Year Extended Service – Return to Anritsu Standard Calibration
MT8220T-ES513 : 5 Year Extended Service – Return to Anritsu Repair and Standard Calibration
MT8220T-ES315 : 3 Year Extended Service – Return to Anritsu Premium Calibration
MT8220T-ES515 : 5 Year Extended Service – Return to Anritsu Premium Calibration
MT8220T-ES516 : 5 Year Extended Service – Return to Anritsu Repair and Premium Calibration
