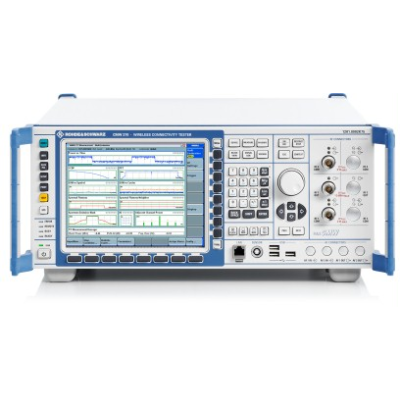

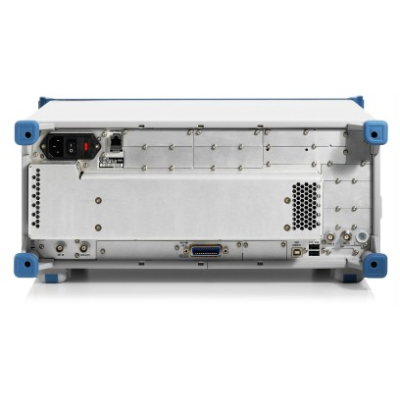

The R&S CMW270 is the ideal test solution for integrated wireless communications solutions as used in laptops, netbooks, game consoles, data cards, wireless headsets and other products of the IoT market. Within the R&S CMW500 product family, the R&S CMW270 offers functionality tailored to the above applications. The tester provides network emulation (signaling mode) for WLAN and Bluetooth as well as generator and analyzer functionality for standards such as WLAN, Bluetooth , GNSS and broadcast technologies.

WLAN IEEE 802.11 a,b,g,n network emulation for RF measurements and application/performance testing (end-to-end)
Bluetooth RF tester (Basic Rate, Enhanced Data Rate and Low Energy) qualified by the Bluetooth SIG
Dual tester concept with multiple-standard RF measurements for WLAN (802.11 a,b,g,n,p,ac) SISO/MIMO and Bluetooth
General-purpose ARB generator for WLAN, Bluetooth , GNSS and various broadcast technologies
Continuous Frequency range up to 6 GHz
