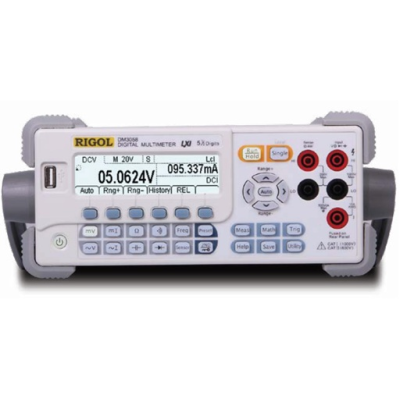

The Model DM3058 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3058 is a great bench tool for basic, reliable measurements regardless of your application or need.

True 5 _ digit resolution (240,000 counts)
123 Readings/second maximum reading rate
0.015% DC Voltage Accuracy
USB and RS-232
SCPI Command Compatibility
Available datalogging and sensor connectivity

Measurement Function : Range
DC Voltage : 200 mV – 1000 V
DC Current : 200 uA – 10 A
AC Voltage (RMS) : 200 mV – 750 V
AC Current (RMS) : 20 mA – 10 A
Resistance(2-wire and 4-wire) : 200 – 100 M
Capacitance : 2 nF – 10000 uF
Diode : 2.0 V
Continuity : 2 k
Frequency and Period : 200 mV – 750 V
Measurement Function : Range
DC Voltage : 200 mV – 1000 V
DC Current : 200 uA – 10 A
AC Voltage (RMS) : 200 mV – 750 V
AC Current (RMS) : 20 mA – 10 A
Resistance(2-wire and 4-wire) : 200 – 100 M
Capacitance : 2 nF – 10000 uF
Diode : 2.4V
Continuity : 2 k
Frequency and Period : 200 mV – 750 V
Measurement Function : Range
DC Voltage : 200 mV – 1000 V
DC Current : 200 uA – 10 A
AC Voltage (RMS) : 200 mV – 750 V
AC Current (RMS) : 20 mA – 10 A
Resistance(2-wire and 4-wire) : 200 – 100 M
Capacitance : 2 nF – 10000 uF
Diode : 2.4V
Continuity : 2 k
Frequency and Period : 200 mV – 750 V
