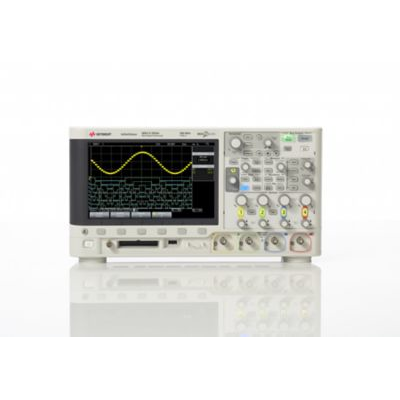

Keysight’s InfiniiVision DSOX2024A, offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class. Keysight’s breakthrough technology delivers more scope for the same budget.

Each 2000X-Series oscilloscope comes standard with one probe per channel.

See more of your signal more of the time

• Largest screen in its class: 8.5-inch WVGA display
• Fastest update rate of 50,000 waveforms per second
• Deepest memory: 100 kpts standard, up to 1 Mpts optional

Do more with the power of 5 instruments in 1:

• Best-in-class oscilloscope
• Integrated logic analyzer (MSO, Optional and upgradable with DSOX2MSO)
• Only hardware-based serial-bus protocol analyzer
• Only built-in 20-MHz function generator: WaveGen
• Only built-in 3-digit voltmeter

Get more investment protection

• Upgradability: add bandwidth, digital channels, memory, serial analysis, DVM or WaveGen after purchase
• Segmented memory
• Mask Testing
• Enable all software applications with the purchase of the application bundle (DSOX2APPBNDL) and save 60% off the cost of purchasing options individually

DSOX2000-001    WaveGen 20 MHz function generator, installed fixed perpetual license
DSOX2000-010    Memory upgrade - 1 M for 2000 X-series oscilloscopes - installed
DSOX2000-232    RS232/UART Serial Decode and Trigger - installed
DSOX2000-805    Module - LAN/VGA
DSOX2000-806    Module - GPIB
DSOX2000-A6J    ANSI Z540-1-1994 Calibration
DSOX2000-AB0    Overlay - Traditional Chinese front panel
DSOX2000-AB1    Overlay - Korean front panel
DSOX2000-AB2    Overlay - simplified Chinese front panel
DSOX2000-AB3    Overlay- Thai Localization
DSOX2000-AB9    Overlay - Portuguese
DSOX2000-ABD    Overlay - German
DSOX2000-ABE    Overlay - Spanish
DSOX2000-ABF    Overlay - French
DSOX2000-ABJ    Overlay - Japanese
DSOX2000-ABZ    Overlay - Italian
DSOX2000-AKD    Overlay- Polish Localization
DSOX2000-AKT    Overlay - Russian
DSOX2000-AMG    Calibration + Uncertainties + Guardbanding (Accredited)
DSOX2000-AMS    CAN and LIN Automotive Serial Decode - installed
DSOX2000-BDL    SW application bundle license for 2000 X-Series, factory installed fixed perpetual license
DSOX2000-DVM    Digital Volt Meter -2.5-digit DVM + 5-digit counter, fixed perpetual license
DSOX2000-EDK    Education Kit for DSO X 2000 Series Oscilloscopes, fixed perpetual license
DSOX2000-LMT    Limit Mask Testing, fixed perpetual license
DSOX2000-LSS    I2C and SPI Low Speed Serial Decode - installed
DSOX2000-PLG    Power cord - Continental European, only for EU distributor with multiple power cord standards
DSOX2000-SGM    Segmented Memory, fixed perpetual license
DSOX2MASK    Mask Limit Testing Application for InfiniiVision 2000 X-Series Oscilloscopes
DSOX2MEMUP    InfiniiVision 2000 X-Series Oscilloscopes Memory Upgrade
DSOX2MSO    InfiniiVision 2000 X-Series Oscilloscope MSO Upgrades
DSOX2SGM    Segmented Memory Acquisition for InfiniiVision 2000 X-Series Oscilloscopes
DSOX2WAVEGEN    Built-in Function Generator Option for InfiniiVision 2000 X-Series Oscilloscopes
DSOXDVM    Integrated Digital Voltmeter (DVM) Option for InfiniiVision X-Series Oscilloscopes
DSOXEDK    Educators Training Kit for InfiniiVision 2000, 3000, 4000 and 6000 X-Series Oscilloscopes
DSOXGPIB    GPIB connection module for the InfiniiVision 2000 and 3000 X-Series oscilloscope
DSOXLAN    LAN/VGA module for the InfiniiVision 2000 and 3000 X-Series Oscilloscope
N2747A    Front Panel Cover for the InfiniiVision 2000 and 3000 X-Series oscilloscope
N2862B    Passive Probe, 10:1, 150 MHz, 1.2 m
N2863B    Passive Probe, 10:1, 300 MHz, 1.2 m
N6456A    Rack Mount Kit for the InfiniiVision 2000 and 3000 X-Series oscilloscope
N6457A    Soft carrying case and front panel cover for 2000 and 3000 X-Series oscilloscope
