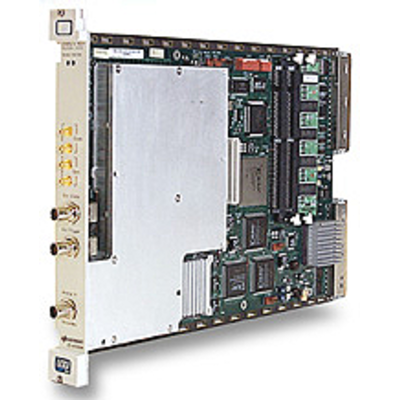

The Keysight E1438C/D are ideal for applications in signal acquisition and analysis, high resolution ATE and radar testing. This single-channel 100 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center frequency tunable digital filtering, and a large signal capture memory, in a single-wide C-size VXI module. The E1438D also incorporates a 200 MB/sec FPDP (Front Panel Data Port) capable of carrying full bandwidth data out of the module for analysis or storage.

0 – 40 MHz input bandwidth

-90 dBfs spurious-free dynamic range

Anti-alias filter and signal conditioning

Digital decimation filters with tunable center frequency

18MB RAM FIFO memory (expandable to 1.2 GB)

2.5 Gigabit/second FPDP (E1438D)

VXIbus outputs

VXI local bus (E1438D only)

Multi-channel compatible

VXI plug&play compatible

Single-slot, C-size module

-
