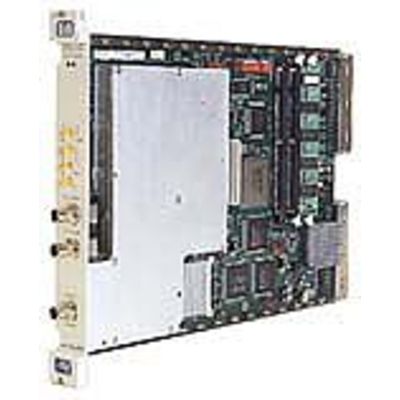

The Keysight 1439A/B is ideal for applications in RF signal acquisition, analysis and high resolution ATE. It has a baseband input and a 70 MHz IF input, both with 36 MHz bandwidth. The single-channel 95 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center-frequency tunable digital filters, and a large signal capture memory, all in a single-wide C-size VXI module. The single difference between the A and B versions is the inclusion of a 2.5Gbit/sec optical front panel data port and TTL trigger input for the 1439B. 36 MHz input bandwidth centered at 70 MHz-90 dBfs spurious-free dynamic rangeAnti-alias filter and signal conditioning18MB RAM FIFO memory (expandable to 1.2 GB)2.5 Gigabit/second FPDP (E1439B)Local bus and VXIbus outputsMulti-channel compatibleVXI plug&play compatibleSingle-slot, C-size module

-
