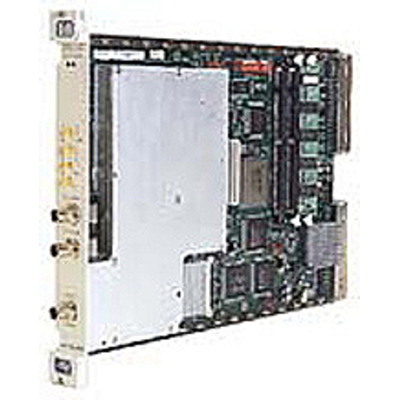

The Keysight 1439C/D is ideal for applications in RF signal acquisition, analysis and high resolution ATE. It has a baseband input and a 70 MHz IF input, both with 36 MHz bandwidth. The single-channel 95 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center-frequency tunable digital filters, and a large signal capture memory, all in a single-wide C-size VXI module. The E1439D also incorporates a 200 MB/sec FPDP (Front Panel Data Port) capable of carrying full bandwidth data out of the module for analysis or storage.

36 MHz input bandwidth centered at 70 MHz

-90 dBfs spurious-free dynamic range

Anti-alias filter and signal conditioning

18MB RAM FIFO memory (expandable to 1.2 GB)

VXIbus outputs

VXI local bus (E1439D only)

Multi-channel compatible

VXI plug&play compatible

Single-slot, C-size module

-
