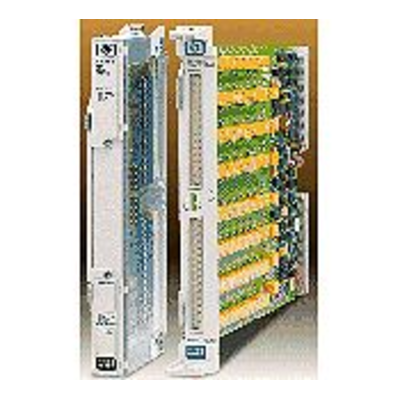

The Keysight E1468A matrix module is a C-size, 1-slot, register-based VXI module. This module consists of a 64-channel, two-wire relay component card (uses the same component card as the E1460A). A terminal block, that provides 8 × 8 matrix topology, is included. The E1468A matrix switches both high and low on each crosspoint.Multiple modules can easily be interconnected with the E1468-80002 daisy-chain cable. The E1468-80002 daisy-chain cable allows quick connect and disconnect of one module from another and is easily attached to expansion connectors on the E1468A terminal blocks. For applications requiring more than 64 crosspoints, the E1465/66/67A relay matrixes are recommended unless your application requires the high voltage/power capability and superior crosstalk performance of the E1468A matrix.

1-Slot, C-size, register based Connect multiple inputs to multiple outputs 8 × 8 and 4 × 16 two-wire switching Guard or shield available for each row and column Includes Keysight QUIC easy-to-use terminal block Latching relays Windows and NT are U.S. registered trademarks of Microsoft Corporation.
