VERSATILE DIGITAL SIGNALS FOR VXI SYSTEMS

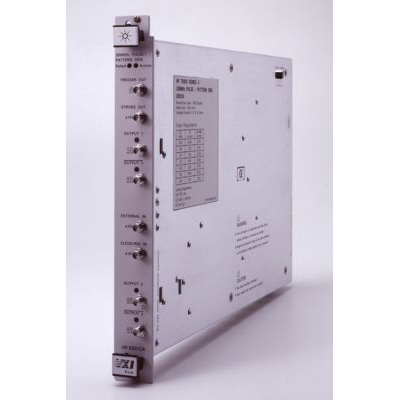

The Keysight E8312A, 330 MHz VXI C-1 Pulse Pattern generator can be used for a wide variety of applications including

- functional verification of high-speed digital or mixed-signal devices

- clock generation for synchronization of an automated test system

- radar testing

- flash memory test

- serial bus testing

The module offers highly accurate signals. The timing parameters can be adjusted for every amplitude or offset level to meet any specification. A fixed trigger-in to signal-out delay and variable delay ranges, enable highly reliable and stable synchronization of test systems even at very precise points in time, such as those used in radar testing.

You can easily integrate the two new pulse/pattern generators into manufacturing test environments because the modules come equipped with VXIplug&play software drivers. Also, they are compatible with Keysight’s box pulse generators (81100 and 8110A), already used in many laboratories handling R&D and quality test applications, making it easy to transition test routines from lab to production site.

Configuration software that allows you to easily select compatible interfaces, controller platforms, and VXI test system components is available.

For more information, click on the link. Further Information

Dual-channel pulse/pattern generator

330 MHz, 3.8 V, 50 Ohm into 50 Ohm

VXI C-size, 1-Slot, register based

Two output channels: SMA (f) 3.5 mm, differential

16 Kbit patterns per channel

Fast transition times: 0.8 ns or 1.6 ns selectable

Functionally compatible with the Keysight 81110A

Broad range of trigger and synchronization capabilities
