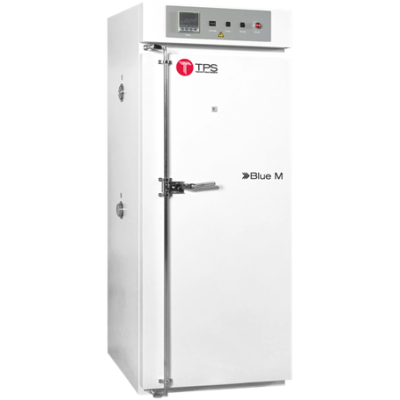

Tenney Engineering LO-27 Blue M Lab Oven

Product Details

  • Manufacturer: Tenney Engineering

  • Model: LO-27

  • Description:

     .95 to 30 cubic feet




No Current Sellers for Tenney Engineering LO-27

Sign Up/Login to get notified when someone has one for sale.

Chamber Size: .95 to 30 cubic feet

Key Specifications

  • Temperature Range: 10°C above ambient to 260°C
  • Control: ≤ ±1°C
  • Uniformity: ≤ ±3°C
  • Run up time to maximum temperature: ≤100min.
  • Long-lasting, tube-style heating elements with superior heat ramp-up and recovery times
  • High quality design for maximum temperature uniformity
  • Efficient and environmentally friendly operation
  • Independent and adjustable over-temperature protection against load and oven damage

Lab Oven Features

  • Ergonomic handles and controls
  • Stainless steel interior
  • Powder coated steel exterior
  • Tube-style heating elements
  • Extra thick insulation
  • Horizontal airflow design
  • Adjustable shelving and 2 perforated shelves for airflow
  • 2 configuration models: economy and premium

Temperature range:

  • 10°C above ambient to 260°C
  • Uniformity: ≤ ± 3°C



Blue M Lab Ovens - LO Series Mechanical Convection Specifications

Model LO-27 LO-90 LO-136
Interior Dimensions
W x D x H		 300 x 300 x 300 mm
11.8 x 11.8 x 11.8 in		 450 x 450 x 450 mm
17.7 x 17.7 x 17.7 in		 550 x 450 x 550 mm
21.6 x 17.7 x 21.6 in
Exterior Dimensions
W x D x H		 500 x 540 x 795 mm
19.7 x 21.3 x 31.3 in		 650 x 690 x 945 mm
25.6 x 27.2 x 37.2 in		 750 x 690 x 1045 mm
29.5 x 27.2 x 41.1 in
Workspace 0.95 ft3 3.2 ft3 4.8 ft3
Heating Method Mechanical Convection
Air Flow Horizontal
Interior Material Stainless Steel
Temperature Range Ambient +20°F to +500°F
Ambient +10°C to +260°C
Temperature Uniformity ≤ ± 3°C
Control Tolerance ≤ ± 1°C
Heating Rate ≤ 100min (Ambient Temperature to Maximum Temperature)
Control Interface High Quality Digital PID Temperature Controller
Temperature Control Mode Set Point Operation
Power Supply 115V 1Ph 60Hz 115V 1Ph 60Hz 230V 1Ph 60Hz
Power 1.2kW 1.5kW 2kW
Casters No No No
Shelf Spacing 0.95" 1.2" 1.5"
Maximum Shelves 3 4 5
Available Slots 12 12 12



Model LO-225 LO-430 LO-850
Interior Dimensions
W x D x H		 600 x 500 x 750 mm
23.6 x 19.6 x 29.5 in		 520 x 660 x 1300 mm
20.5 x 26 x 51.2 in		 790 x 710 x 1450 mm
31.1 x 28 x 57.1 in
Exterior Dimensions
W x D x H		 800 x 740 x 1245 mm
31.5 x 29.1 x 49 in		 750 x 850 x 1860 mm
29.5 x 33.5 x 73.2 in		 1020 x 900 x 2010 mm
40.2 x 35.4 x 79.1 in
Workspace 7.9 ft3 15 ft3 30 ft3
Heating Method Mechanical Convection
Air Flow Horizontal
Interior Material Stainless Steel
Temperature Range Ambient +20°F to +500°F
Ambient +10°C to +260°C
Temperature Uniformity ≤ ± 3°C
Control Tolerance ≤ ± 1°C
Heating Rate ≤ 100min (Ambient Temperature to Maximum Temperature)
Control Interface High Quality Digital PID Temperature Controller
Temperature Control Mode Set Point Operation
Power Supply 230V 1Ph 60Hz 230V 1Ph 60Hz 230V 1Ph 60Hz
Power 3kW 7kW 11kW
Casters No No No
Shelf Spacing 2" 2" 2"
Maximum Shelves 6 10 12
Available Slots 12 25 28
