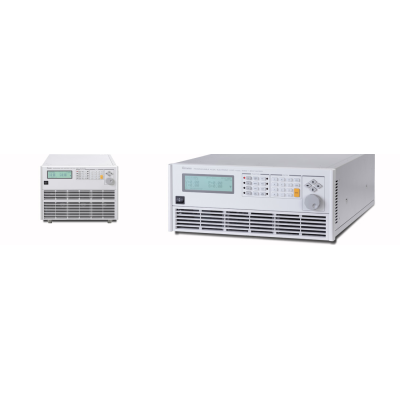

Chroma 63802 Programmable AC Electronic Load 1800W/18A/350V
Product Details
-
Manufacturer: Chroma
-
Model: 63802
-
Description:
Programmable AC Electronic Load 1800W/18A/350V
The Chroma 63800 Electronic Loads can simulate a variety of load conditions under high crest factor and varying power factors with real time compensation even when the voltage waveform is distorted. This unique feature provides real world simulation capabilities and prevents overstressing the instrument resulting in reliable and unbiased test results.
Power Rating:1800W/3600W/4500W
Voltage Range: 50V – 350Vrms
Current Range: Up to 45Arms
Peak Current: Up to 135A
Frequency Range: 45 to 440Hz, DC
Crest Factor Range: 1.414 to 5.0
Parallel units for higher power or synchronize for three phase operation
Maximum paralleled power: 22.5KW single phase / 67.5KW three phase
63802 Programmable AC Electronic Load 1800W/18A/350V
63803 Programmable AC Electronic Load 3600W/36A/350V
63804 Programmable AC Electronic Load 4500W/45A/350V
