The 19301A Impulse Winding Tester combined with high/low inductance applied technology has 1000V impulse voltage and a 200MHz high speed sampling rate that satisfies test requirements for a wide range of power inductance products from 0.1uH to 100uH. The built-in Area Size and Differential Area Comparisons, FLUTTER Value and LAPLACIAN Value functions make it an effective way to inspect the coils for poor insulation.

10V~1000V impulse voltage test, with 0.25V test resolution
High impulse test sampling rate (200MHz), 10bits
High/Low inductance test (0.1uH~100uH)
Inductance contact check function
Inductance differential voltage compensation function
Breakdown voltage analysis function
Low voltage range to increase the sensitivity of waveform analysis (32V/64V/128V/256V/512V/1024V)
USB port for storing waveform & screen capture
Multi-language, graphical color display
Standard LAN, USB, and RS232 interfaces

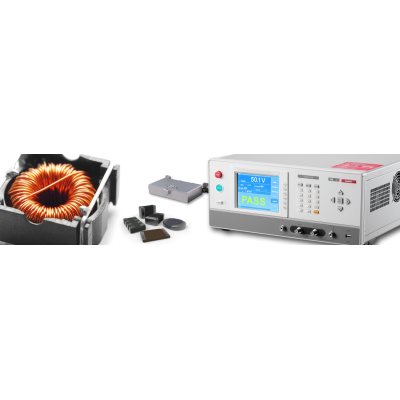

19301A Impulse Winding Tester (Low Inductance)
