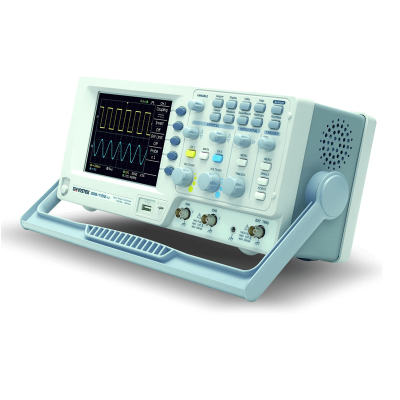

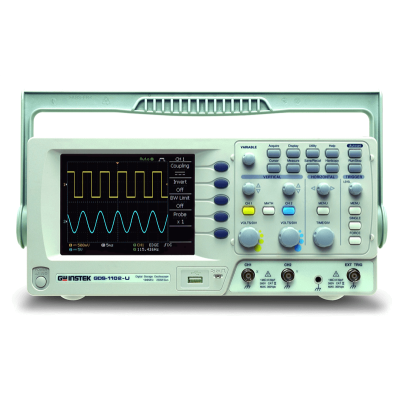

The GDS-1000-U Series offers 100MHz, 70MHz and50MHz digital storage oscilloscopes with 5.7 color TFT LCD displays. With dual sampling modes, a 4,000 point record length, a real-time sampling rate of 250MSa/s and an ET sampling rate of 25GSa/s, the GDS-1000-U Series DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device portsupport. The GDS-1000-U Series is designed to meet todays most demanding engineering requirements and budgets.

100/70/50 MHz Bandwidth with 2 Input Channels
250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
4k Memory Length per Channel
Peak Detect as Fast as 10ns
Save/Recall of 15 Front Panel Settings & Waveforms
5.7 TFT Color Display
19 Auto Measurements
Arithmetic Operators – Add, Subtract, FFT
USB Port for PC Connection
Data Logger
Limited Lifetime Warranty
