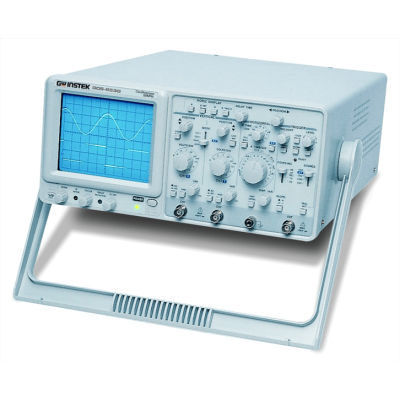

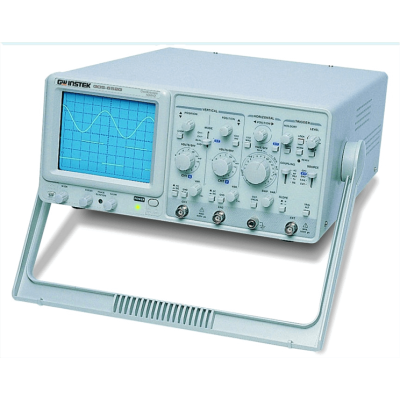

The 50MHz GOS-653G/652G Seriesis anexample of classic analog oscilloscope design. The GOS-653G /652G cover a broad range of industry applications, such as product design, assembly lines, repair & servicing, and educational purposes for EE laboratories and class experiments. Coupled with various trigger functions (Auto, Norm, TV), complex waveforms can be easily triggered for use in diverse applications. The ALT Trigger function enables users to observe signals from dual channels simultaneously. The Hold Off function helps stabilize sophisticated signals within repetitive frequencies or periods. Delayed sweep magnification (GOS-653G) can display and zoom inwaveforms at the same time. For classic design and operation applicable to a wide range of applications, the GOS-653G/652G Series offers extra value.

50MHz Bandwidth, Dual Channel
Delayed Sweep (GOS-653G)
Built-In Delay Line (GOS-653G)
TV Synchronization
CH1 Output
Z-Axis Modulation Input
ALT Triggering Function
Hold Off Function
Trigger Level Lock Function
