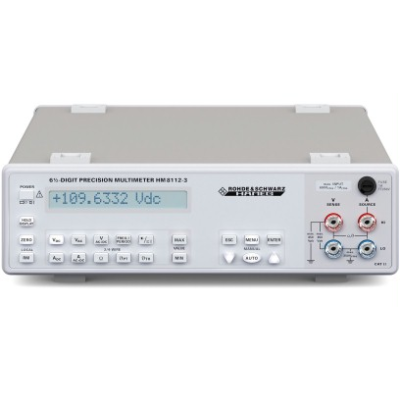

Digital Multimeter

Measurement range: DC to 300 kHz
Resolution: 100 nV, 100 pA, 100 ?, 1 pF, 0.01 C/F
High accuracy: 0.003 % (DC), 0.08 % (AC)
True RMS measurement, AC and AC+DC
6_-digit display (1 200 000 counts)
Measurement functions: voltage, current, resistance and temperature (PT100/PT1000 and Ni sensors) measurements, Frequency and diode tests (two and four-wire)
Measurement intervals: from 0.1 s to 60 s
Mathematic functions: limit testing, min./max., average, offset
Internal data logger for long-term acquisition
RS-232/USB dual interface, optionally IEEE-488 (GPIB)
HM8112-3S: HM8112-3 with scanner card

HM8112 : Digital Multimeter
HO880 : IEEE-488 (GPIB) Interface
HZ10B : Silicon Test Lead
HZ10R : Silicon Test Lead
HZ10S : Silicon Test Lead
HZ13 : USB interface cable, 1.8 m
HZ14 : Serial interface cable, Sub-D 9-pin, 1:1, 1.8 m
HZ42 : 19" rackmount kit, 2 RU
HZ72 : GPIB cable, 2 m, 90 angled, stackable
