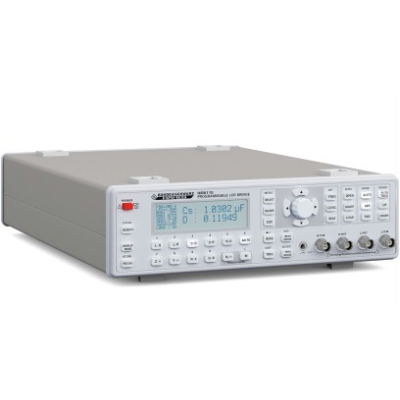

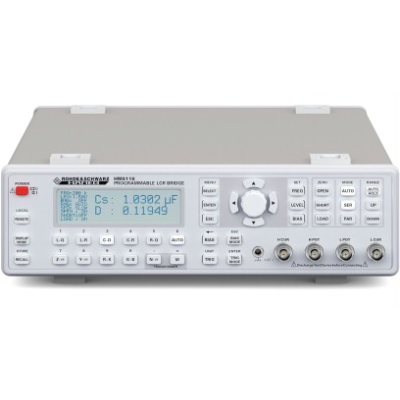

HM8118 LCR Bridge/Meter – 200kHz LCR-Bridge HM8118

Measurement range: 20 Hz to 200 kHz (69 steps)
Basic accuracy: 0.05 %
Measurement rate: up to 12 values/s
Automatic or manual selection of circuit type (serial, parallel)
Measurement functions: L, C, R, |Z|, X, |Y|, G, B, D, Q, ?, ?, M, N
Transformer measurement: mutual inductance and ratioInternal: 0 V to 5 V/0 mA to 200 mA (resolution: 10 mV/1 mA)
External: 0 V to 40 V (bias voltage only)
RS-232/USB dual interface for remote control
Fanless design

HM8118 : LCR Bridge/Meter
HO118 : Binning interface
HO880 : IEEE-488 (GPIB) Interface
HZ13 : USB interface cable, 1.8 m
HZ14 : Serial interface cable, Sub-D 9-pin, 1:1, 1.8 m
HZ42 : 19" rackmount kit, 2 RU
HZ72 : GPIB cable, 2 m, 90 angled, stackable
HZ181 : 4-terminal test fixture incl. shorting plate for HM8118
HZ186 : 4-terminal transformer test cable for HM8118
